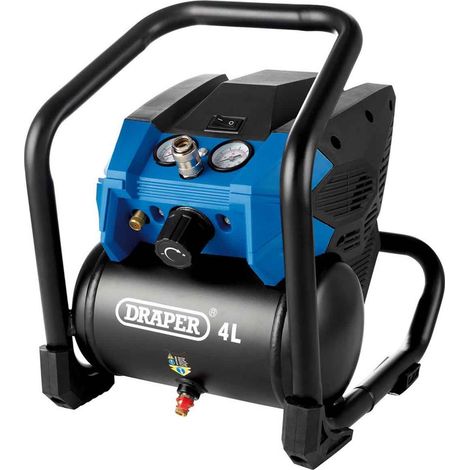

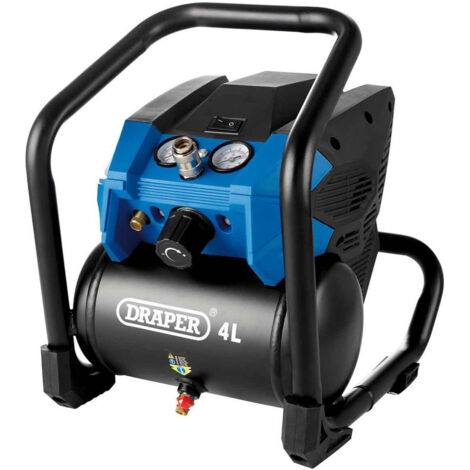

Draper D20 20V Cordless 4L Portable Air Compressor (Bare Tool, Model 08093)

Product out of stock

Product information

Description

General description

This is a versatile, cordless 20V air compressor with a 4-liter tank, designed for DIY and home improvement tasks. It features an oil-free motor for low maintenance and high performance. The compressor is lightweight, weighing less than 8 kg, and includes a transport handle for easy portability.

Technical specifications

  • Tank capacity: 4 liters
  • Power source: D20 20V Li-ion batteries (sold separately)
  • Battery configuration: Single or double battery for extended runtime
  • Motor: Oil-free
  • Maximum pressure: 8 bar (116 psi)
  • Cut-in pressure: 5.4 bar
  • Cut-out pressure: 8 bar
  • Airflow: 0.6 m³/h at 90 psi, 1.3 m³/h at 40 psi
  • Duty cycle: 90 seconds in 10 minutes
  • Dimensions: approximately W 305 x H 410 x D 400 mm
  • Weight: 7.7 kg
  • Compatibility and accessories

  • Compatible with D20 series batteries and chargers (sold separately)
  • Includes a female Euro outlet with 1/4 BSP thread for tool connection
  • Installation

  • Connect the compressor to a D20 20V Li-ion battery (sold separately)
  • Attach the desired tool to the Euro coupling outlet using the quick-release mechanism
  • Usage

  • Power on the compressor and monitor pressure gauges to ensure correct operation
  • Use the quick-release Euro coupling to connect air tools
  • Adjust pressure settings as needed for your specific task
  • Other information

  • Includes one D20 20V Compressor, 4L (sold bare)
  • Features

    • Brand
      DRAPER
    • Length
      1 cm
    • Width
      1 cm
    • Height
      10 cm
    • Weight
      8.122 kg
