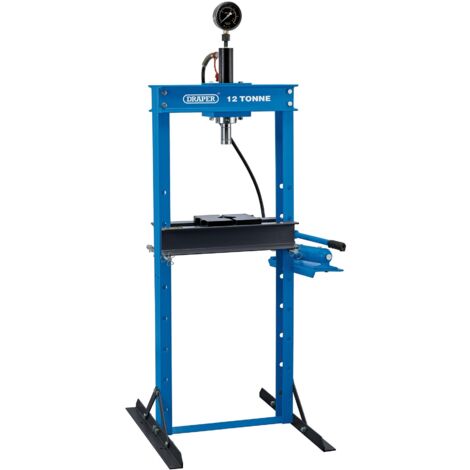

Draper Hydraulic Floor Press – 12 Tonne Capacity with Gauge and Two Flat V-Shaped Blocks (Model 70539)

Name: Draper Hydraulic Floor Press – 12 Tonne Capacity with Gauge and Two Flat V-Shaped Blocks (Model 70539)
Brand: DRAPER
SKU: 70539
Availability: OutOfStock

Product out of stock

Product information

Description

General description

This is a robust hydraulic floor press with a capacity of 12 tonnes, designed for heavy-duty pressing tasks. It features a sliding ram and adjustable table heights for versatile use.

Technical specifications

Capacity: 12 tonnes

Frame depth: 80mm

Frame height: 1350mm

Frame width: 630mm

Maximum table to ram height: 917mm

Minimum table to ram height: 77mm

Overall height: 1655mm

Ram stroke: 180mm

Ram type: Sliding

Working table width: 455mm

Weight: 78.5kg

Compatibility and accessories

Includes two flat V-shaped blocks for various pressing applications

Installation

Simple setup requiring a stable, level surface

Usage

Adjust the table height to suit your project needs from 224mm to 1064mm

Use the glycerine liquid filled gauge for accurate pressure monitoring

Operate the sliding ram for precise pressing actions

Other information

Equipped with a safety valve to prevent overloading

Anti-kink coil fitted to each end of the flexible hose for increased durability

The glycerine liquid filled gauge provides increased accuracy and prolonged service life

Features

Brand
DRAPER
With CE safety
Yes
Stroke lenght
180 mm
Weight
78.5 kg
ManoMano Reference
ME50777072
MMID
530666131926
Product code
70539
EAN
5010559705399

Advice from

Hydraulic workshop press buying guide

Essential for installing ball bearings or extracting bushings, hydraulic workshop presses are able to apply force of up to 50 tonnes. Featuring a hydraulic cylinder and a gauge to control pressure, these devices are mounted on a frame and may be powered or operated manually. Read on for our top tips.
