Draper 70561 Draper Expert Hydraulic Floor Press, 30 Tonne
Sold by BuyaParcel and 2 other sellers
You may also like
Compare with similar items
Product information
Description
Robust hydraulic 30 tonne floor press with sliding ram for precise pressing. Fitted with hand pump for manual hydraulic operation. There are 12 adjustable table heights with a working range between 25-850mm. The table can be lifted or lowered using a winch. Robot welding one-piece frame for increased stability. There are dustproof covers fitted to the top of the frame to prevent dust entering the pump and ram, which helps to increase their service life. There is a removable parts tray located in the frame base. Supplied with eight press pins ranging from 2-15 tonnes and two flat v-shaped pressing blocks.
- Sliding ram
- Rack and pinion table
- Storage tray located in the base frame, which can be removed
- Supplied with press pins
- Capacity: 30 Tonne
- Gauge diameter: 100mm
- Ram stroke: 220mm
- Ram scale: 145mm - 0mm - 145mm
- Ram diameter: 50mm
- Table height: 25-850mm
- Press pin capacity: 2-15 Tonnes
- Overall height: 1800mm
- Frame dimensions: (H) 1685 x (W) 600 x (D) 148mm
- Weight (net): 157kg
Features
- BrandDRAPER
- Stroke lenght220 mm
- Force30 t
- MaterialMetal
- Weight157 kg
- Power supplyManual
- ManoMano ReferenceME50777053
- MMID104785937876
- Product code70561
- EAN5010559705610
Advice from
Hydraulic workshop press buying guide
Essential for installing ball bearings or extracting bushings, hydraulic workshop presses are able to apply force of up to 50 tonnes. Featuring a hydraulic cylinder and a gauge to control pressure, these devices are mounted on a frame and may be powered or operated manually. Read on for our top tips.
'/%3E%3C/svg%3E)
Visit the DRAPER storeDraper was was started in 1919 when the founder, Bert Draper, made the purchase of the original warehouse. Today the Draper brand is known around the world for its core range of quality tools.
You are here:
Related categories
Press machine
Heat press machine
Boxing equipment
Floor pops
Matching floor table lamps
Floor lamps uk
Metal floor lamp
Motorcycle lift
Tall floor lamps
Uplighter floor lamp
Corner floor lamp
The range floor lamps
Glass floor lamp
Traditional floor lamp
Black floor lamp
Car tools
Draper HYDRAULIC FLOOR PRESS 12 TONNE 70539 70539 Floor Press, 12 Tonne
Draper HYDRAULIC FLOOR PRESS 20 TONNE 70540 70540 Floor Press, 20 Tonne
Draper Hydraulic Floor Press (50 Tonne) (35582)
Sealey Hydraulic Press 30 Tonne Economy Floor Type YK30ECF

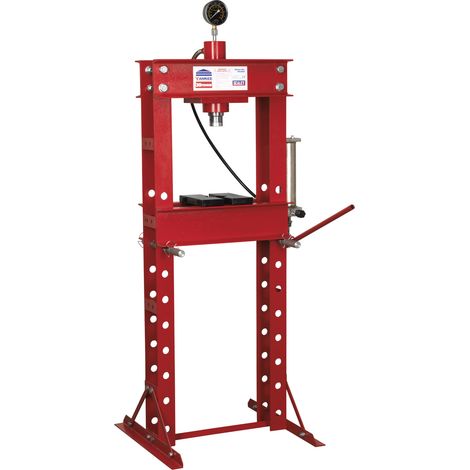

Sealey Hydraulic Press 30 Tonne Floor Type YK30XF
