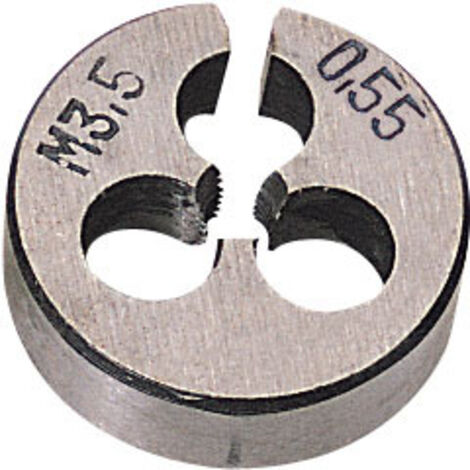

Draper 13/16 Inch (20.64mm) Outside Diameter 3.5mm Coarse Thread Circular Die (Model 83806)

Description

• This is a circular die designed for threading applications. It is manufactured from high carbon steel for durability and precision. The die features coarse threads suitable for various threading tasks. It has an outside diameter of 13/16 inches (20.6 mm) and a thickness of 3.5 mm. The product is designed to provide accurate and clean threads for metalworking projects.

Technical Specifications

• Material: High carbon steel
• Thread type: Coarse
• Thread size: M3.5 x 0.6
• Outside diameter: 13/16 inches (20.6 mm)
• Thickness: 3.5 mm

Compatibility and Accessories

• Suitable for threading various metals
• Compatible with standard threading tools and holders

Installation

• Insert the die into a compatible die holder or threading tool
• Secure the die firmly before use
• Align the die properly with the workpiece for accurate threading

Usage

• Use with a suitable tap wrench or die stock
• Apply cutting lubricant to ensure smooth threading
• Turn the die clockwise to cut threads onto the workpiece
• Ensure steady pressure and proper alignment during operation

Other Information

• Display packed for easy handling and storage
