Draper 13/16 Inch Outside Diameter 5mm Coarse Circular Die (Model 83808)

Sold by BuyaParcel and 2 other sellers

You may also like

66 Nail Punch 3/16in PRI66316
2 options

66 Nail Punch 3/16in PRI66316

Free shipping

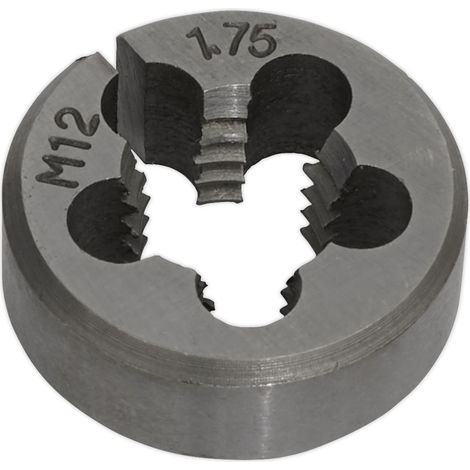

Sealey Split Die M12 x 1.75mm SSDM12SEALEY
7 options

Sealey Split Die M12 x 1.75mm SSDM12

Free shipping

Compare with similar items

Often purchased together

Product information

Description

Description

  • This is a circular die designed for threading applications, with an outside diameter of 13/16 inches (approximately 20.6 mm) and a thread size of 5 mm. It is manufactured from high carbon steel, ensuring durability and precision. The die features accurately cut coarse threads, making it suitable for various DIY and home improvement projects. It is packaged for display or retail purposes.

Technical Specifications

  • Outside diameter: 13/16 inches (20.6 mm)
  • Thread size: 5 mm
  • Material: High carbon steel
  • Thread type: Coarse

Compatibility and Accessories

  • Compatible with standard threading tools and holders designed for circular dies
  • Suitable for creating or repairing external threads on metal rods and pipes

Installation

  • Insert the die into a compatible die holder or threading tool
  • Secure the die properly before use
  • Align the die with the workpiece to ensure accurate threading

Usage

  • Use with a suitable tap wrench or threading tool
  • Apply cutting lubricant to improve thread quality and extend die life
  • Turn the die clockwise to cut or repair external threads on metal rods or pipes

Other Information

  • Manufactured by Draper
  • Display packed for retail sale

Features

  • Brand
    DRAPER
  • Height
    1 cm
  • Weight
    12 g
  • Material
    Steel
  • Metric thread not standard thread
    M5
Advice from

Taps and dies buying guide

Taps and dies are essential to make or re-thread a screw, a nut or any other mechanical element. The three-piece tap sets are the most commoly used and the tap wrench is as important as the die stock for a proper tapping. Drilling is required before tapping.
