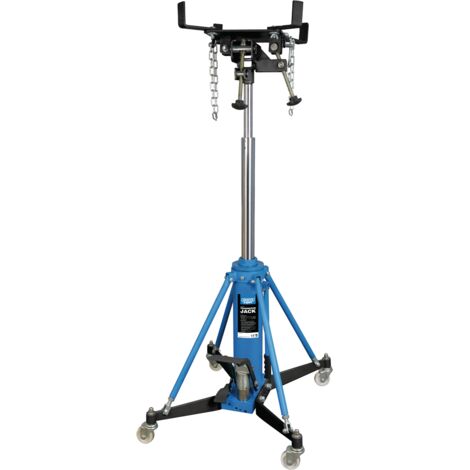

Draper 1000kg Vertical Transmission Jack with Telescopic Design and Adjustable Saddle

Name: Draper 1000kg Vertical Transmission Jack with Telescopic Design and Adjustable Saddle
Brand: DRAPER
SKU: TJ1000-E
Price: 570.07 GBP
Availability: InStock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by GravaHaus and 2 other sellers

Product information

Description

General description

This hydraulic vertical transmission jack is designed for professional and DIY use, offering a safe and efficient way to lift and position heavy components such as gearboxes. It features a telescopic twin-stage ram for adjustable height and a fully adjustable saddle to accommodate various sizes. The jack is equipped with safety features including a safety overload valve and a lowering control system for precise and secure lowering of loads. Its user-friendly design includes twin foot pedals for hands-free operation, chain straps for added support, and adjustable supporting struts for enhanced stability. The nylon wheels ensure quiet, smooth movement without damaging workshop floors, while the side-mounted handle improves maneuverability.

Technical specifications

Capacity: 1,000 kg

Minimum height: 940 mm

Maximum height stage 1: 1,430 mm

Maximum height stage 2: 1,940 mm

Castor diameter: 75 mm

Base size: 740 x 640 mm

Saddle: Fully adjustable

Chain length: 1,495 mm

Weight: 67 kg

Manufactured to EN1494 standards

Compatibility and accessories

Suitable for lifting gearboxes, engines, and other heavy components

Supports various sizes due to adjustable saddle and tilt features

Installation

Place the jack on a flat, stable surface

Adjust the saddle to fit the component

Use the side handle to position the jack as needed

Usage

Operate via twin foot pedals for hands-free lifting and lowering

Use chain straps for support when lifting heavy loads

Adjust supporting struts for increased stability during operation

Ensure safety overload valve is functional before use

Features

Brand
DRAPER
Maximum load
1000 kg
Colour
Black
Width
1 cm
Length
1 cm
Material
Metal
Power supply
Hydraulic
Security system
Yes
Jack type
Hydraulic jack
ManoMano Reference
ME15870394
MMID
432661711744
Product code
TJ1000-E
EAN
5010559197880
