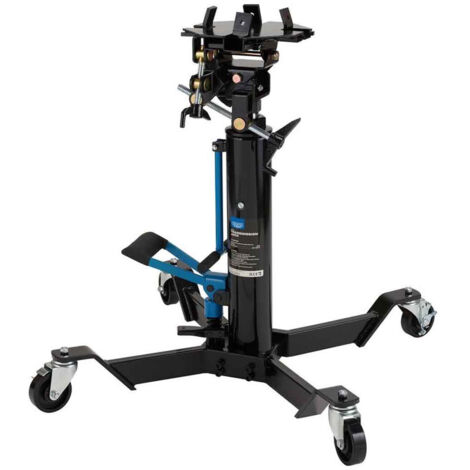

Draper Expert Evolution Vertical Transmission Jack with Twin-Stage Ram, 500kg Capacity (Model 08557)

Description

• This vertical transmission jack is designed for lifting and supporting heavy loads in vehicle maintenance and industrial applications. It features a telescopic twin-stage ram with a low entry height, allowing access in tight spaces. The jack offers smooth, hands-free operation via a foot pedal and an adjustable saddle to accommodate various components. It tilts in all directions—forward, backward, and side-to-side—to facilitate precise positioning. The ratchet saddle claws enable quick and secure load clamping, while two non-marking ratchet straps provide additional support. Equipped with four large nylon castors, it ensures quiet, smooth movement without floor damage. A side-mounted T-handle improves maneuverability, and an overload safety valve ensures safe operation.

Technical Specifications

• Capacity: 500kg
• Minimum height: 902mm
• Maximum height (stage 1): 1,387mm
• Maximum height (stage 2): 1,891mm
• Saddle type: Adjustable
• Base dimensions: 290 x 290mm
• Castor diameter: 100mm
• Weight: 66kg

Compatibility and Accessories

• Suitable for vehicle lifts and industrial load handling
• Includes 1 vertical transmission jack

Installation

• Place on a stable, level surface
• Ensure the load is properly balanced before lifting
• Use the side-mounted T-handle for positioning and maneuvering

Usage

• Operate the foot pedal to raise or lower the load smoothly
• Adjust the saddle to fit the component securely
• Use tilting functions to position the load accurately
• Engage the ratchet saddle claws for secure clamping
• Always monitor the overload safety valve during operation

Other Information

• Fully tested and certified for safety and reliability
