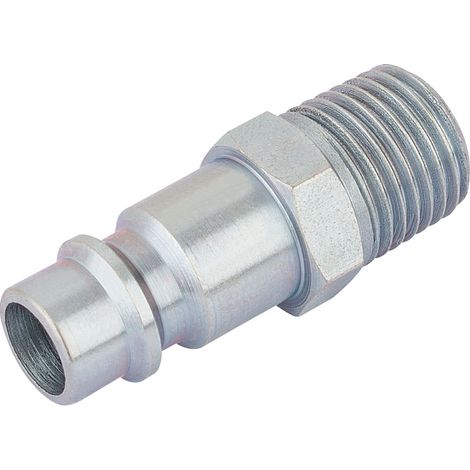

Euro-Xf 1/4" Male Nut Adapter for BSP and Euro Couplings - Model 54415

Description

This heavy-duty high-flow connector is designed for demanding applications, offering reliable performance and durability. It has been tested to withstand over one million cycles, ensuring long-lasting use. The connector is compatible with most popular European and international adaptor profiles, including Cejn and Rectus. Made from zinc-passivated steel, it provides enhanced corrosion resistance and is built for tough environments.

Technical Specifications

• Flow capacity at 6 bar inlet and 0.5 bar pressure drop: 78 cfm (2200 L/min)
• Maximum working pressure: 500 psi (35 bar)
• Test pressure: 725 psi (50 bar)
• Maximum burst pressure: 2030 psi (140 bar)
• Temperature range: -40°C to 100°C
• Nominal flow diameter: 7.4 mm

Compatibility and Accessories

Compatible with most popular European and international adaptor profiles such as Cejn and Rectus. Sold loose without additional accessories.

Installation

Connect the fitting to compatible hoses or equipment by attaching it securely to the adaptor profile. Ensure proper sealing and tightening to prevent leaks. No special tools are required beyond standard fittings.

Usage

Designed for heavy-duty, high-flow applications, this connector is suitable for industrial, automotive, and other demanding environments. It can handle high pressures and frequent cycles, making it ideal for continuous use in challenging conditions.

Other Information

Constructed from hard-wearing steel with zinc passivation for corrosion resistance, ensuring durability and longevity in harsh environments.
