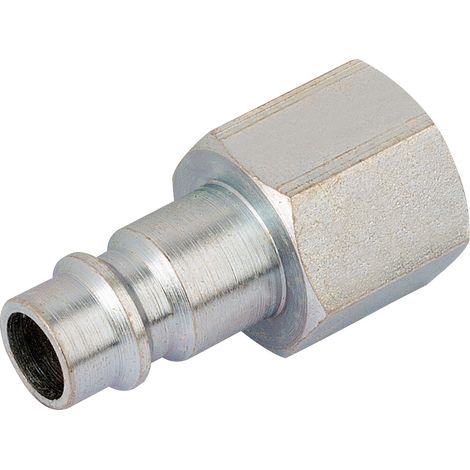

Draper Euro-XF 1/4" BSP Female Nut PCL Euro Coupling Adaptor (Sold Loose)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account
Sold by GravaHaus and 2 other sellers

You may also like

Draper 1/4" BSP Taper PCL Male Screw Tailpiece with 5/16" Bore Hose Connection (Model 25799)DRAPER

Draper 1/4" BSP Taper PCL Male Screw Tailpiece with 5/16" Bore Hose Connection (Model 25799)

Free shipping
Draper 36197 Brass Garden Hose Tap Connector, 1/2DRAPER
12 options

Draper 36197 Brass Garden Hose Tap Connector, 1/2

Free shipping
Draper 5M (16.4 ft) Air Line Hose with 1/4" BSP Fittings, 5/16" (8mm) Bore, Suitable for Pneumatic Tools and Air SystemsDRAPER

Draper 5M (16.4 ft) Air Line Hose with 1/4" BSP Fittings, 5/16" (8mm) Bore, Suitable for Pneumatic Tools and Air Systems

Free shipping
Draper 170mm Rigid Delivery Tube with Hydraulic Connector – Model 57817DRAPER

Draper 170mm Rigid Delivery Tube with Hydraulic Connector – Model 57817

Free shipping
Draper 1-Inch Brass and Rubber Tap Connector (Model 27697)DRAPER
12 options

Draper 1-Inch Brass and Rubber Tap Connector (Model 27697)

Free shipping
Draper Tools 5010559578757-57875 - 1/8" BSP Connector (3.2 mm)DRAPER TOOLS

Draper Tools 5010559578757-57875 - 1/8" BSP Connector (3.2 mm)

Free shipping
Festool 768135 Reducing Sleeve DC-D 36/27-ASFESTOOL

Festool 768135 Reducing Sleeve DC-D 36/27-AS

34
Lumatic 3245801 Safe-Lock H.D Mato Grease Coupler 81mm Long Reach LUM3245801MATO

Lumatic 3245801 Safe-Lock H.D Mato Grease Coupler 81mm Long Reach LUM3245801

15
£60.00
Free shipping
Draper Air Mini Oiler (Model 70837) - Compact Lubrication Tool for Precision Oil ApplicationDRAPER

Draper Air Mini Oiler (Model 70837) - Compact Lubrication Tool for Precision Oil Application

Free shipping
Ersandy – 20cm Tire Inflation Hose – Flexible Rubber – 2 Valve Adapters – Maximum Pressure 300 psi – For Cars, Bicycles, Motorcycles

Ersandy – 20cm Tire Inflation Hose – Flexible Rubber – 2 Valve Adapters – Maximum Pressure 300 psi – For Cars, Bicycles, Motorcycles

7
1/4" BSP Quick Connect Compressor Fitting Air Pneumatic Coupler Kit Hose Fittings Male Female Connector 10 PiecesONTWAY

1/4" BSP Quick Connect Compressor Fitting Air Pneumatic Coupler Kit Hose Fittings Male Female Connector 10 Pieces

8
Brass Inflator Nozzle, Air Pump Clip, Car Tire Valve Adapter, Inflator Valve Connector, Brass Nozzle Pump, Inflator Valve Clip, Clamp Connector AdapterMEMKEY

Brass Inflator Nozzle, Air Pump Clip, Car Tire Valve Adapter, Inflator Valve Connector, Brass Nozzle Pump, Inflator Valve Clip, Clamp Connector Adapter

23
£18.95
Free shipping
3pcs Brass Inflator Nozzle Air Pump Clip Inflator Valve Connector Car Tire Valve Adapter for Car or Truck Tires Barbed Type 8mmMEMKEY

3pcs Brass Inflator Nozzle Air Pump Clip Inflator Valve Connector Car Tire Valve Adapter for Car or Truck Tires Barbed Type 8mm

4
£15.74
Free shipping
Compressed air quick fitting, air hose, coupling connector, pneumatic connection for compressor, RTGPT pneumatic quick fitting (2 pairs SH20 + PH20)KZQ

Compressed air quick fitting, air hose, coupling connector, pneumatic connection for compressor, RTGPT pneumatic quick fitting (2 pairs SH20 + PH20)

5
£22.41
Free shipping
Kcvv – 220V Air Compressor Pressure Regulator – 0-180 psi Range – 3000L/min Flow Rate – Easy Installation in Various EnvironmentsKCVV

Kcvv – 220V Air Compressor Pressure Regulator – 0-180 psi Range – 3000L/min Flow Rate – Easy Installation in Various Environments

31
£53.50
Pressure regulator with pressure switch for compressor. Pressure switch with 2 displays.XVX

Pressure regulator with pressure switch for compressor. Pressure switch with 2 displays.

8
£35.63
Free shipping
CCYKXA Inflator Pump Connector Portable 90 Degree Lock Zinc Alloy Car Tire Air Compressor Adapter for Automobile -A

CCYKXA Inflator Pump Connector Portable 90 Degree Lock Zinc Alloy Car Tire Air Compressor Adapter for Automobile -A

4
(£23.52/kg)
Free shipping
Houhence 10-pack 1/4" BSP compressor fittings – nickel-plated, hardened steel – male and female threads – quick coupling for pneumatic toolsHOUHENCE

Houhence 10-pack 1/4" BSP compressor fittings – nickel-plated, hardened steel – male and female threads – quick coupling for pneumatic tools

10
£19.06
2pcs Car Tire Valve Adapter, 8mm Brass Tip Pump Valve Clip Clamp Connector Adapter for Car or Truck TiresTOOLIVE

2pcs Car Tire Valve Adapter, 8mm Brass Tip Pump Valve Clip Clamp Connector Adapter for Car or Truck Tires

7
£18.16
Free shipping
36cm Tire Inflator Hose Adapter, Tire Inflator Hose Adapter, Air Inflator Hose Adapter for Motorcycle, Bike, Car, TruckBEIJIYI

36cm Tire Inflator Hose Adapter, Tire Inflator Hose Adapter, Air Inflator Hose Adapter for Motorcycle, Bike, Car, Truck

3
(£63.84/kg)
£15.77
Free shipping

Compare with similar items

Product information

Description

General description

This heavy-duty high-flow connector is designed for demanding applications. It has been tested to withstand over 1 million cycles, ensuring durability and reliability. Made from hard-wearing steel and zinc passivated to significantly enhance corrosion resistance, it is suitable for demanding environments and long-term use. Sold loose for versatile installation.

Technical specifications

  • Flow capacity at 6 bar inlet with 0.5 bar pressure drop: 78 cfm (2200 L/min)
  • Maximum working pressure: 500 psi (35 bar)
  • Test pressure: 725 psi (50 bar)
  • Maximum burst pressure: 2030 psi (140 bar)
  • Temperature range: -40°C to 100°C
  • Nominal flow diameter: 7.4 mm

    • Compatibility and accessories

  • Compatible with most popular European adaptor profiles including Cejn and Rectus
  • Sold loose, allowing for flexible use and installation

    • Installation

  • Connect the fitting to compatible hoses or equipment following standard procedures for high-pressure fittings
  • Ensure proper sealing and secure attachment to prevent leaks

    • Usage

  • Ideal for heavy-duty, high-flow applications requiring durable and reliable connections
  • Suitable for use in industrial, automotive, and other demanding environments

    • Other information

  • This is a Draper product.

    • Features

    • Brand
      DRAPER
    • Material
      Steel
    • Connection configuration
      Female
    • Pipe thread size
      1/4" (8x13)
    • Length
      10 mm
    • Weight
      30 g
    • ManoMano Reference
      ME1311312
    • MMID
      349508781578
    • Product code
      5010559544196
    • EAN
      5010559544196
