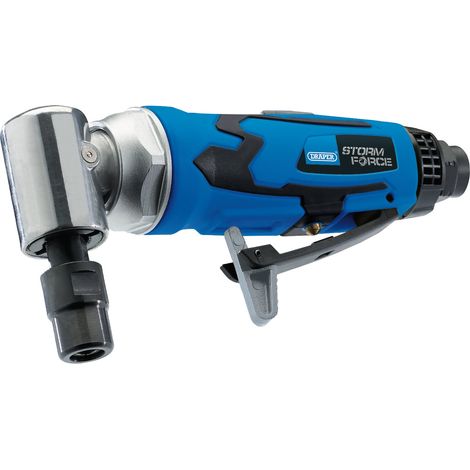

Draper Storm Force&174 90&deg Mini Air Die Grinder (65137)

Name: Draper Storm Force&174 90&deg Mini Air Die Grinder (65137)
Brand: DRAPER
SKU: SFAG90
Availability: OutOfStock

Product out of stock

Product information

Description

General description

This low noise and low vibration 90-degree mini air grinder is expertly designed for grinding and polishing metal components, particularly in hard-to-reach areas. It features a variable speed motor and a rotating air inlet to prevent kinking of air lines, ensuring user comfort with its soft grip casing.

Technical specifications

Free speed: 20,000 rpm

Operating air pressure: 90 psi (6.2 bar)

Average air consumption: 4.0 cfm (114 L/min)

Minimum hose size: 3/8” I.D.

Air inlet: 1/4” BSP

Collet size: 6 mm

Weight: approximately 0.55 kg

Compatibility and accessories

Compatible with standard 6 mm collets

Supplied with two open-ended collet wrenches for easy changing of accessories

Installation

Connect the air inlet to a suitable compressed air source with a minimum hose size of 3/8” I.D.

Ensure the air pressure is set to 90 psi (6.2 bar) for optimal performance.

Usage

Use for grinding and polishing metal surfaces, especially in tight or hard-to-reach areas.

Adjust the variable speed motor according to the task requirements.

Maintain a steady airflow and avoid kinking the air line with the rotating inlet feature.

Other information

Designed for professional and DIY use in metalworking and home improvement projects. Display packed.

Features

Brand
DRAPER
Warranty
1 year(s)
Material
Metal
Weight
0.573 kg
Pressure
6.21 bar
