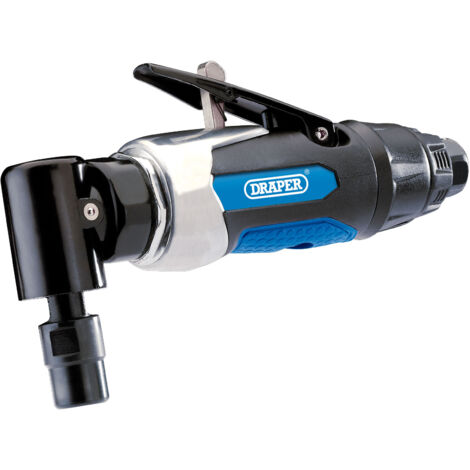

Draper 1/4" Right Angle Air Die Grinder (90°, 6mm Cut-Off Tool, Model 83769)
Sold by GravaHaus and 2 other sellers
You may also like
Compare with similar items
Product information
Description
Description
- This die grinder is designed for grinding and polishing metal components. It features a lightweight aluminum housing combined with an ergonomic soft grip handle for comfortable use over extended periods. The tool is equipped with a lever lock trigger for safety and an adjustable four-speed rear regulator to control performance. It includes a 1/4" BSP airline connector with a 360° rotating air inlet, which helps prevent kinking of air lines during operation. Its ergonomic design and lightweight construction help reduce the cold-sink effect, enhancing user comfort during prolonged use.
Specifications
- Collet size: 6mm
- Free speed: 20,000 rpm
- Operating air pressure: 90 psi (6.2 bar)
- Average air consumption: 4.0 cfm (113 L/min)
- Vibration level: 2.9 m/s²
- Minimum hose size: 3/8 inch (10 mm)
- Air inlet: 1/4" BSP
- Weight: 0.53 kg
Compatibility and Accessories
- Compatible with standard 6mm collets
- Includes air inlet with 360° rotating feature for flexible positioning
Installation
- Connect the tool to an air compressor using a 1/4" BSP air hose
- Ensure the air pressure is set to 90 psi (6.2 bar)
- Attach the appropriate collet for your grinding or polishing accessories
Usage
- Use the lever lock trigger for safety during operation
- Adjust the rear regulator to set the desired speed
- Operate the tool with steady pressure on the workpiece for effective grinding or polishing
Other Information
- Designed for professional and DIY metalworking tasks
Features
- BrandDRAPER
- Disc / blade diameter6 mm
- MaterialAluminium
- Weight0.687 kg
- Pressure6.21 bar
- Air inlet connection1/4
- Rotation directionRight
- ManoMano ReferenceME14682137
- MMID496682366524
- Product codeDAT-ADG
- EAN5010559837694
