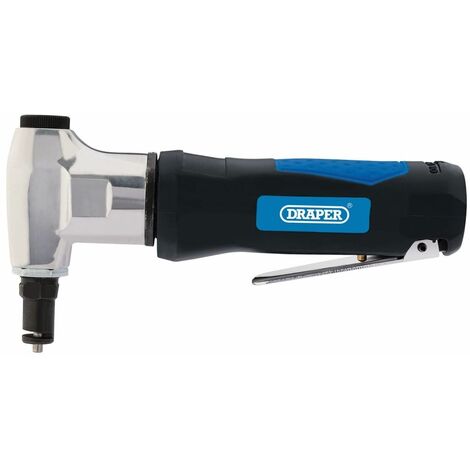

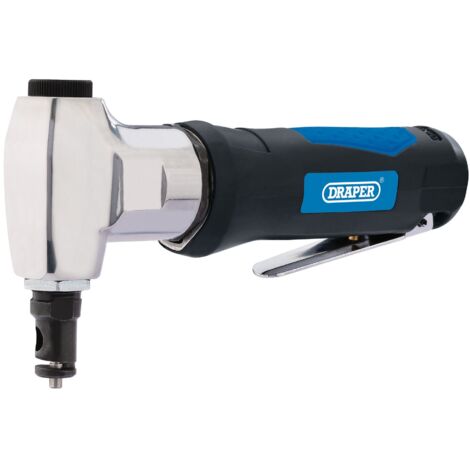

Draper Air Nibbler for Sheet Metal Cutting – Cuts 1.5mm Steel, 1/4" BSP Air Inlet, 3800 Strokes per Minute, Model 70835

Description

• This lightweight aluminium air nibbler is designed for cutting sheet metal up to 1.5mm thick with minimal distortion. It produces smooth, burn-free edges and reduces heat buildup and user fatigue. The tool features a soft grip handle for added comfort and is suitable for various DIY and home improvement tasks.

Technical Specifications

• Material: Lightweight aluminium
• Maximum sheet metal thickness: 1.5mm
• Working pressure: 90psi (6.2bar)
• Average air consumption: 9.8 cfm (278 l/min)
• Air inlet size: 1/4"
• Air hose size: 3/8"
• Strokes per minute: 3800
• Length: 195mm
• Weight: 0.83 kg

Compatibility and Accessories

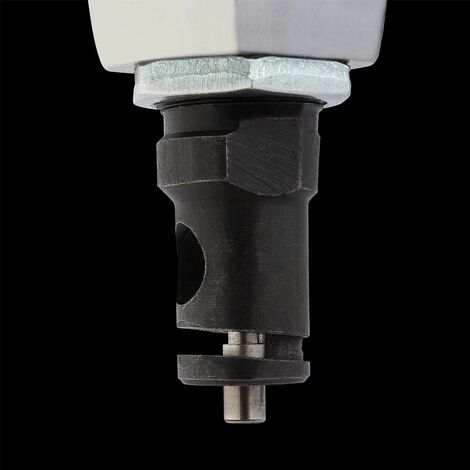

• Includes an adjustable die for different cutting needs
• Supplied with a 1/4" BSP connector for easy connection to air hoses

Installation

• Connect the air nibbler to an air compressor using the included 1/4" BSP connector
• Ensure the compressor provides the recommended working pressure of 90psi

Usage

• Secure the sheet metal to a stable surface before cutting
• Adjust the die as needed for different cut sizes
• Operate the tool with steady, controlled movements to achieve clean cuts

Other Information

• Designed for professional and DIY metalworking projects
