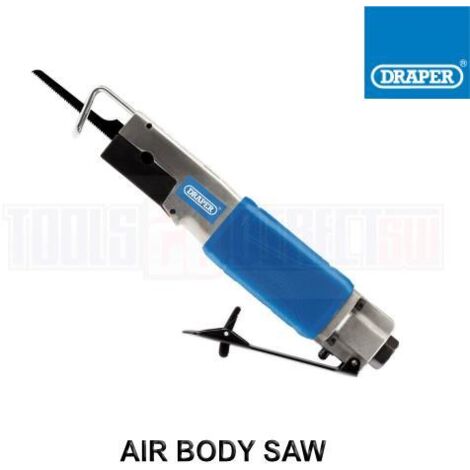

Draper Reciprocating Air Body Saw with Exhaust Panel, Suitable for Sill and Chassis Bodywork Repair (Model 70833)

General Description

• This air body saw is made from high-quality aluminium with a steel trigger, designed for precise cutting tasks. It is suitable for cutting silencers, exhausts, and performing car body repairs. The saw features a soft grip handle for user comfort and a safety trigger to prevent accidental activation. It includes an adjustable work guard to control the depth of cut and can perform straight or scroll cuts on mild steel. The kit comes with two saw blades for versatile use.

Technical Specifications

• Working pressure: 90 psi (6.2 bar)
• Average air consumption: 2.5 cfm (78 l/min)
• Air inlet size: 1/4 inch
• Air hose size: 3/8 inch
• Strokes per minute: 10,000
• Weight: 0.64 kg

Compatibility and Accessories

• Includes two saw blades (18T and 24T)
• Supplied with two hex keys for adjustments

Installation

• Connect the air body saw to a compatible air compressor with a 1/4 inch inlet
• Attach the appropriate saw blade for the intended cut
• Ensure the safety trigger is engaged before operation

Usage

• Use the safety trigger to prevent accidental start during setup
• Adjust the work guard to set the desired cut depth
• Perform straight or scroll cuts on mild steel (up to 1.2mm thickness)
• Operate at the recommended pressure of 90 psi for optimal performance

Other Information

• Designed for light to medium cutting tasks in automotive and DIY projects
