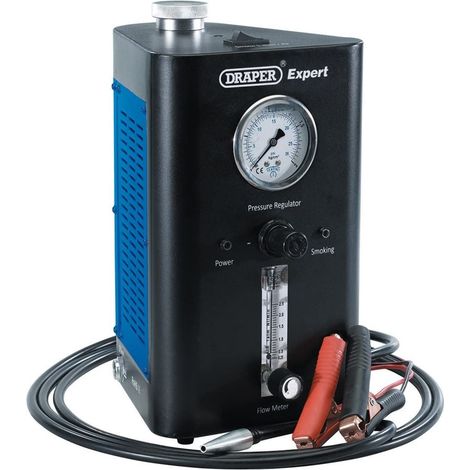

Draper Expert Turbo Smoke Diagnostic Machine with Pipe Vacuum Leak Detection (Model 94078)

Description générale

• This expert-quality smoke diagnostic machine is designed to detect leaks in petrol and diesel systems. It features visual pressure, flow, and fluid level indicators to ensure accurate operation. The device is compact, lightweight, and portable, making it suitable for mechanics and breakdown technicians. It includes an onboard micro air compressor and a 12V power connection for easy use in various locations.

Spécifications techniques

• Power supply: 12V DC
• Turbo mode output pressure: 3-20 PSI
• Operating temperature: 0°F to 140°F (-17°C to 60°C)
• Hose length: 3 meters (10 feet)
• Dimensions: 280 x 185 x 165 mm
• Weight: 4 kg

Compatibilité et accessoires

• Suitable for petrol and diesel system leak detection, including turbos, intercoolers, manifolds, brake boosters, EGR valves, brake vacuum hoses, cooling systems, and water leaks
• Supplied with 23 plastic plugs for sealing various openings
• Includes a 31mm-81mm cone adaptor, battery cable with crocodile clips, smoke outlet hose, air intake adaptor, inflatable block-off bladder, and a hook
• All accessories are stored in a convenient storage case

Installation

• Connect the device to a 12V power source using the provided battery cable with crocodile clips
• Attach the appropriate sealing plugs and adaptors based on the system to be tested
• Ensure the device is securely connected and ready for operation

Utilisation

• Switch between air mode and smoke mode depending on the leak detection needs
• Use the variable flow gauge and control to precisely locate leaks quickly
• Follow safety guidelines and recommended procedures for leak testing

Autres informations

• The device is designed for professional use and offers high accuracy in leak detection
