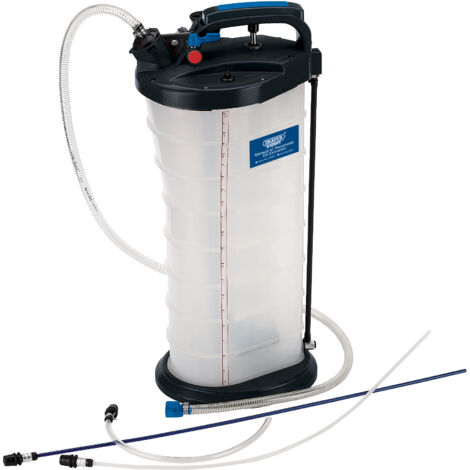

Draper Manual and Pneumatic Oil Extractor Model 77057 – Versatile Oil Extraction Tool for Automotive and Mechanical Applications

General Description

• This oil extractor is designed for efficient removal of oils from motor vehicles, motorcycles, marine engines, gearboxes, and generators without removing the drain plug. It is suitable for one-person operation and can be used with either a hand pump or compressed air. The waste oil tank is made from translucent, hydrocarbon-resistant plastic, allowing easy monitoring of oil levels. The kit includes a 1.5-meter suction tube and three extraction straws for versatile use.

Technical Specifications

• Reservoir capacity: 10 liters
• Air inlet size: 1/4 BSP
• Suction tube pressure: 0.8 MPa
• Weight (empty): 4 kg

Compatibility and Accessories

• Compatible with motor vehicles, motorcycles, marine engines, gearboxes, and generators
• Supplied with 1.5 meters of suction tube and three extraction straws for various applications

Installation

• Attach the suction tube to the extractor and connect to a compressed air supply or use the hand pump
• Position the extraction straw into the oil fill port or oil reservoir

Usage

• Operate the hand pump or connect to compressed air to create suction
• Extract the oil into the reservoir, monitoring the level through the translucent tank
• Once complete, disconnect and clean the equipment as needed

Other Information

• Manufactured from durable, hydrocarbon-resistant plastic for safety and longevity
