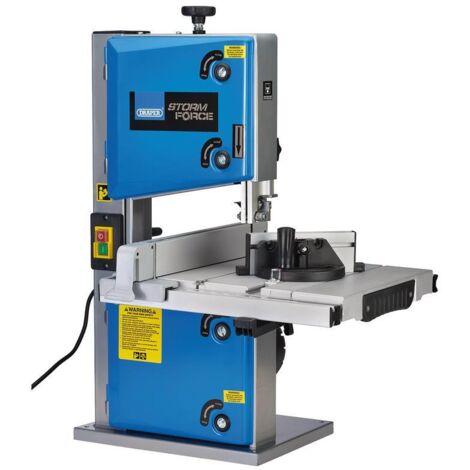

Draper 200mm Bench-Mounted Workshop Bandsaw with 250W Motor, 7 TPI Blade, Model 98471

Name: Draper 200mm Bench-Mounted Workshop Bandsaw with 250W Motor, 7 TPI Blade, Model 98471
Brand: DRAPER
SKU: BS200/250SF
Price: 129.98 GBP
Availability: InStock
Rating: 5 (1 reviews)

Sold by GravaHaus and 3 other sellers

Product information

Description

General description

This bench-mounted bandsaw is ideal for both professional and home workshops. It is designed to cut wood, wood-derived materials, and plastics using a continuous saw band supported by two wheels. The sturdy welded steel frame provides stability and durability. The saw features adjustable blade tension and tracking for precise cuts, along with a tilting table that ranges from 0 to 45 degrees for angled, mitre, and bevel cuts. It includes a mitre guide for cross-cutting and a no-volt release switch to prevent accidental restart after power interruptions.

Technical specifications

Voltage: 230V

Frequency: 50Hz

Power: 250W

No-load speed: 1400rpm

Maximum throat capacity: 200mm

Cutting depth: 80mm

Maximum capacity: 85mm

Cutting speed: 15m/sec (900m/min)

Table size: 300 x 360mm to 520mm

Dimensions: 335 x 250 x 685mm

Weight: 15kg

Compatibility and accessories

Includes a 7 TPI blade suitable for various materials

Supplied with a parallel rip fence for straight cuts

Additional accessories: open-ended spanner, flat-head screwdriver, push stick, and two hex keys

Installation

Set up the bandsaw on a stable, flat surface

Adjust the table tilt and blade tension according to the material and cut required

Install the blade and align the tracking for accurate cutting

Usage

Use the mitre guide for angled cuts up to 45 degrees

Ensure the blade tension and tracking are properly set before operation

Use safety equipment and follow standard safety procedures during use

Features

Brand
DRAPER
Weight
15 kg
Power
250 W
Voltage
230 V
Material
Steel
