Draper Storm Force® 230V Belt and Disc Sander, 300W Power Tool (Model 98419)

Description

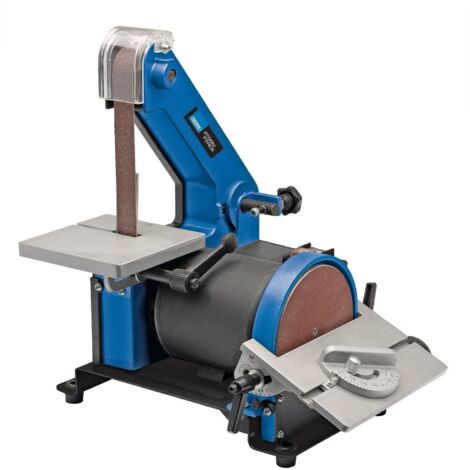

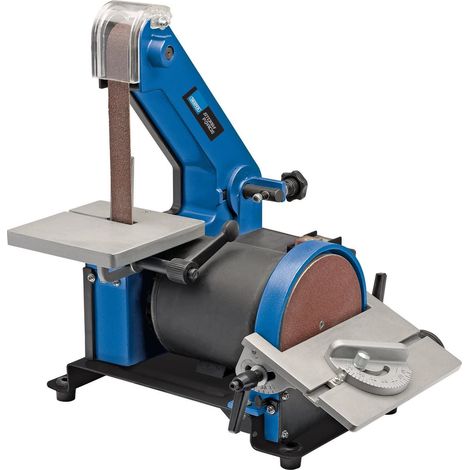

• This versatile benchtop combined belt and disc sander is ideal for woodworking, plastics, and hobby projects. It features a 25mm sanding belt and a 127mm diameter disc, both designed to provide smooth and detailed finishes. The belt is positioned vertically with its own worktable, and the disc has a dedicated worktable with a mitre fence for precise angle sanding. The worktable measures 178 x 95mm and can pivot from 0 to 45 degrees for accurate angled sanding. The machine includes a safety no-volt switch and can be connected to a vacuum system for dust extraction through a 40mm outlet, helping to keep the workspace clean. It is suitable for craft, hobby, and home workshop use.

Specifications

• Power: 300W
• Voltage: 230V
• No-load speed: 2950rpm
• Belt speed: 13.5m/s
• Belt size: 25 x 762mm
• Disc diameter: 127mm
• Belt table size: 130 x 130mm
• Disc table size (working): 178 x 95mm
• Table tilt: 0-45 degrees
• Dust extraction outlet: 40mm
• Overall dimensions: 360 x 289 x 365mm
• Weight: 7.5kg

Compatibility and Accessories

• Supplied with sanding belt and disc

Installation

• Place on a stable, flat surface.
• Connect to a vacuum system for dust extraction if desired.
• Adjust the belt and disc positions as needed for your project.

Usage

• Use the belt and disc for smoothing, shaping, and finishing wood or plastic surfaces.
• Adjust the worktable angles for precise angled sanding.
• Ensure safety by using the no-volt switch and proper dust extraction.
