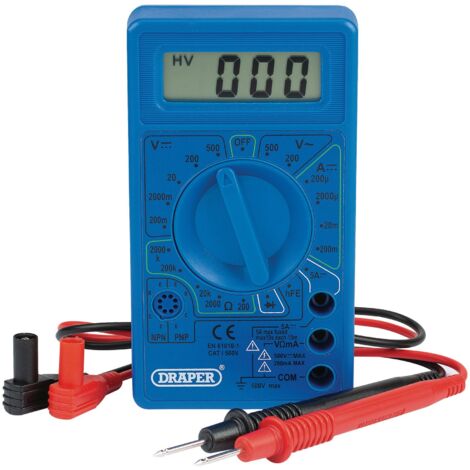

Draper Pocket Digital Multimeter Model 68476 – Compact, Accurate Electrical Testing Tool

Description générale

• This digital multimeter measures AC and DC voltage, DC current, and resistance. It features a 20-position rotary switch for selecting measurement ranges and includes a battery check function. Compact and easy to use, it is suitable for various electrical testing tasks.

Spécifications techniques

• DC voltage measurement: 200mV, 2000mV, 20V, 200V, 500V (accuracy ±5%)
• AC voltage measurement: 200V, 500V (accuracy ±5%)
• DC current measurement: 200μA, 20mA, 200mA (accuracy ±5%)
• Resistance measurement: 200Ω, 2000Ω, 20kΩ, 200kΩ, 2000kΩ (accuracy ±1.5%)
• Size: 70 x 24 x 126mm
• Weight: 150g
• Battery: 1 x PP3

Compatibilité et accessoires

• Includes test probes, leads, and a battery for immediate use

Installation

• Insert the appropriate test probes into the multimeter's input jacks
• Insert a fresh PP3 battery if needed

Utilisation

• Turn the rotary switch to the desired measurement function and range
• Connect the test probes to the circuit or component to be tested
• Read the measurement value displayed on the screen
