General description

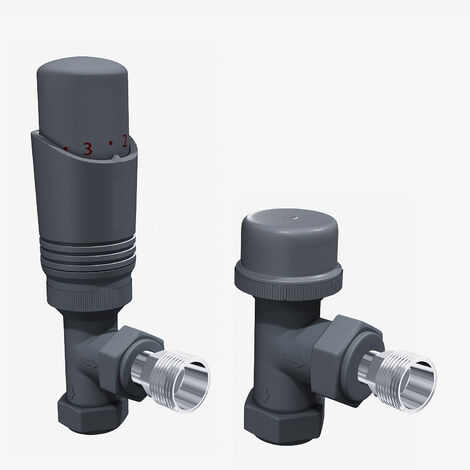

The ELEGANT Thermostatic Radiator Anthracite Angled Valve Set is a stylish and practical solution for controlling the output of a single radiator and adjusting room temperature. This compact and cost-effective valve meets British standards, making it an ideal choice for any central heating radiator or towel radiator. Available in three colors—white, anthracite, and chrome—it complements other ELEGANT heating products, enhancing your home decor while ensuring a warm and comfortable environment year-round.Technical specifications
- Colour: Anthracite
- Material: Brass H58-3 or CW617N
- Processing: Forging, CNC Machining
- Size: G1/2''*15mm
- Working Medium: Hot/Cold Water
- Range of Temperature Adjustment: 7 ~ 28 Degrees Centigrade
- Range of Scale: 0 ~ 5
- Max Working Pressure: 10 bar
- Max Pressure Difference: 0.6 bar
- Max Working Temperature: 50 Degrees Centigrade
- Max Medium Temperature: ≤ 100 Degrees Centigrade
- Influence of Pressure Difference: 0.4K
- Influence of Temperature Difference: 0.5K
- Nominal Flow Rate: 90L/min
- Test Standard: EN215
- Temperature Range: 7, 12, 16, 20, 24, 28 Degrees Centigrade
Installation
The installation condition requires the radiator and towel rail interface to have an internal thread of G1/2. The pipeline should be a 15mm copper pipe; otherwise, an adapter will be necessary. Ensure to follow the installation instructions carefully for optimal performance.Other information
