General description

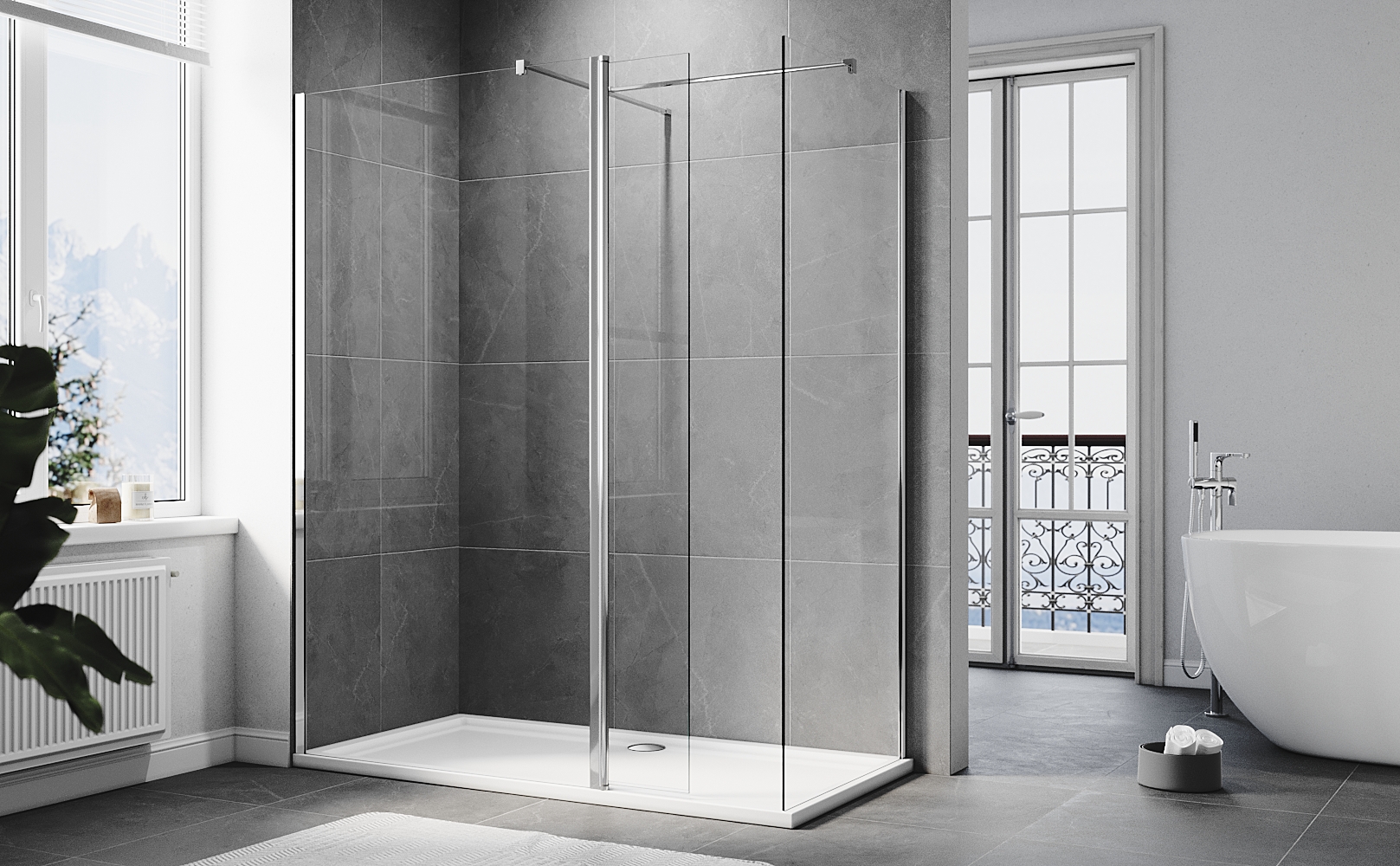

The ELEGANT Walk in Shower Enclosure features a spacious design with a 1500x900mm SMC tray, a 760mm main panel, a 300mm flipper panel, and a 900mm side panel. This enclosure is crafted with 8mm safety tempered glass and includes a waste trap for efficient drainage.Technical specifications
- Weight: 95.23kg
- Main Panel Size: 760(745-760)mm x 1900mm
- Side Panel Size: 900(885-900)mm x 1900mm
- Flipper Glass Size: 300mm x 1900mm (maximum swivel of the flipper panel is 180°)
- SMC Tray Size: 1500mm x 900mm x 40mm (LxWxH)
- Drain Cover Size: 125mm x 125mm (LxW)
- Standard White PVC Drain Size: 90mm
- Mounting Adjustment Design: Adjustment range 15mm
- Two Support Bars: 1000mm (can be cut to required sizes)
Compatibility and accessories
- Universal design can be fitted for left or right-hand entry
- All screws are made of stainless steel, rust-resistant and long-lasting
- Includes all accessories and installation instructions
Installation
- Tray suitable for installation on or level with the floor
- Easy to cut tray size based on installation conditions
Usage
- NANO self-cleaning glass reduces cleaning frequency
- Anti-slip texture on the tray enhances safety
- Non-porous surface prevents dirt and bacteria accumulation
