General description

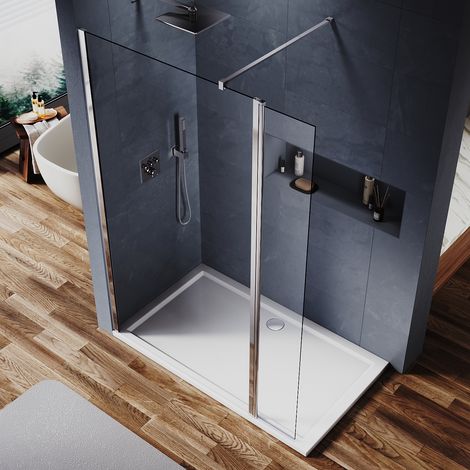

The ELEGANT Walk in Shower Enclosure features a modern design with a spacious 800mm shower screen and a 300mm flipper panel, complemented by a durable 1500x900mm SMC tray and waste trap. This enclosure is crafted from 6mm safety tempered glass, ensuring both style and safety for your bathroom.Technical specifications
- Weight: 50.125kg
- Main Panel Size: 800(785-800)mm x 1850mm
- Flipper Glass Size: 300mm x 1850mm (Maximum swivel of the flipper panel is 180°)
- Support Bar Size: 1000mm (can be cut to size)

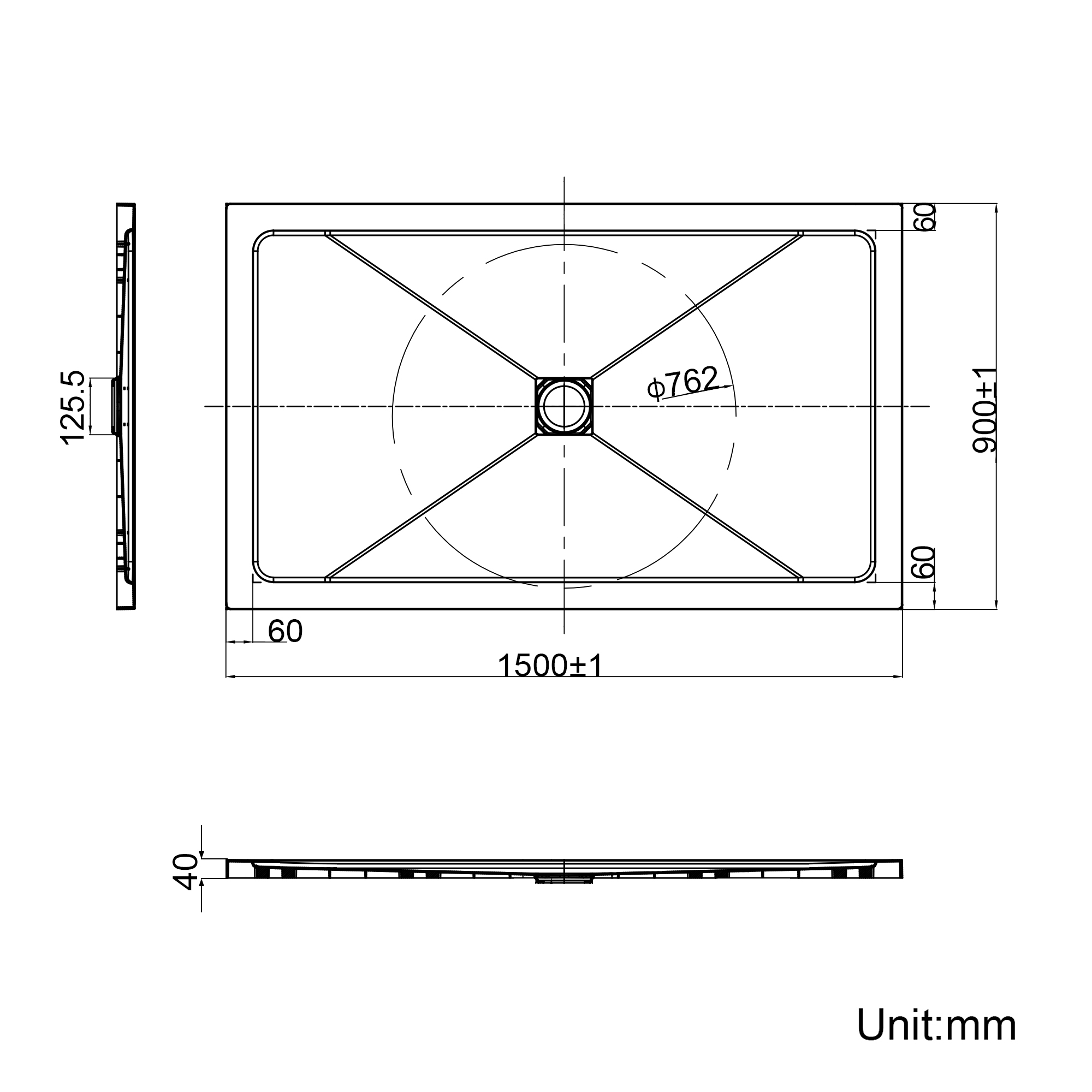

- SMC Tray Size: 1500mm x 900mm x 40mm (LxWxH)
- Drain Cover Size: 125mm x 125mm (LxW)
- Standard White PVC Drain Size: 90mm
- Mounting Adjustment Design: Adjustment range 15mm
Compatibility and accessories
- Universal design can be fitted to the left or right-hand entry
- All screws are made of stainless steel, rust-resistant and long-lasting
Installation
- Easy installation with all accessories included
- Installation instructions provided
Usage
- Designed for use in modern bathrooms, providing a spacious and elegant showering experience
- Anti-slip texture on the tray for enhanced safety
- Non-porous surface for easy cleaning and maintenance
Other information
- Material: Sheet molding compound for the tray, providing outstanding corrosion resistance and durability
- 304 Stainless Steel Drain Cover: Smooth and shiny, effectively preventing debris from entering the pipe
- Drainage slope design: 2.5% natural slope for effective drainage
- Images:
