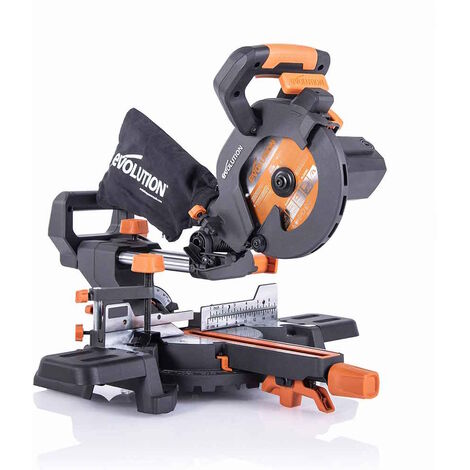

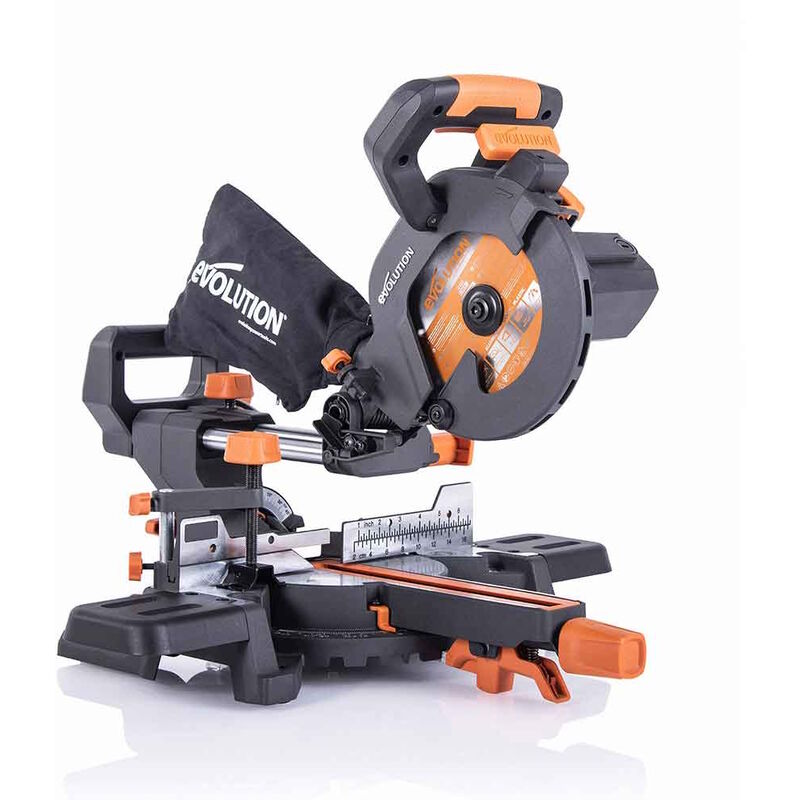

Evolution R185SMS+240 - 047-0001A 230v 185mm Multi-Material Sliding Mitre Saw

• Multi-Material - Premium Japanese tungsten carbide tipped (TCT) blade included cuts steel, aluminium, wood with embedded nails, plastic and more
• Powerful – 1200W optimised gearbox and blade system, increases motor and blade life to cut through a variety of materials with ease
• Accurate - Precision cutting with laser guidance, trench cut facility, 0° - 45° bevel and 50° - 50° mitre settings.
• 3 years limited warranty (only valid if purchased in the UK)

Evolution 240v 185mm Multi-Material Mitre Saw

  The Evolution R185SMS+ 185mm multi-material sliding mitre saw can cut a variety of materials such as mild steel, aluminium, wood with embedded nails, plastic, copper and more thanks to the R185TCT-20MS blade and optimised gearbox and motor speed. This Evolution saw cuts mild steel with no heat, no burrs and virtually no sparks, leaving ready-to-weld cuts making it perfect for efficient on-site use. This is the ideal saw for cutting copper pipe, plastic pipe, aluminium channel, cable tray, skirting boards, architraves, MDF, hardwood like Oak and Ash, plus much more. This invaluable tool for the home and professional workshop slices through reclaimed timber with ease and even through embedded nails, screws and staples. The optional diamond blade (sold separately) completes the package, allowing you to cut brick, stone, concrete and unglazed tiles. The Evolution R185SMS+ comes supplied with a R185TCT-20MS (20 teeth) blade with a 185mm blade diameter and 20mm bore diameter.

Features and Benefits:

• Multi-Material - Premium Japanese tungsten carbide tipped (TCT) blade included cuts steel, aluminium, wood with embedded nails, plastic and more
• Powerful – 1200W optimised gearbox and blade system, increases motor and blade life to cut through a variety of materials with ease
• Accurate - Precision cutting with laser guidance, trench cut facility, 0° - 45° bevel and 50° - 50° mitre settings.
• 3 years limited warranty (only valid if purchased in the UK)
• Premium TCT Blade - Long-life multi-material cutting TCT blade for smoother cuts
• Dual Quick Release Clamps - for additional accuracy & faster adjustments
• Slide Rail Protector - Protects against damage & prevents dust ingress
• Cleaner & Safer Working - Dust collection bag & dust port adaptor for use with vacuum extraction
• Integrated Carry Handles - Easy to carry & transport around the workplace
• 3M Power Cable - Reduces the need for extension leads



Technical Specification:

  Motor (220-240V ~ 50 Hz): 1000W Speed No Load: 3700 Weight (Net): 8.9kg Dust Port Diameter: 36mm Tool Dimensions (H x W x L) (0° / 0°): 290 x 595 x 565 Cutting Capacities: Mild Steel Plate - Max Thickness: 6mm Mild Steel Box Section - Max Wall Thickness: 3mm (50mm mild steel box section.) Wood – Max section: 210 x 56mm Minimum size work-piece: L125 x W:30 x D:3mm (Note: Any work-piece smaller than the recommended minimum work-piece requires additional support before cutting.) Maximum Cutting Angles Mitre - 50°, Bevel - 0° - 45° Mitre: 0°, Bevel: 0° = Max Width of Cut: 210mm, Max Depth of Cut: 56mm Mitre: 0°, Bevel: 45° = Max Width of Cut: 210mm, Max Depth of Cut: 38mm Mitre: 45°, Bevel: 0° = Max Width of Cut: 145mm, Max Depth of Cut: 56mm Mitre: 45°, Bevel: 45° = Max Width of Cut: 145mm, Max Depth of Cut: 38mm

Supplied With:

1 x R185SMS+ sliding mitre saw (185 mm) 1 x R185TCT-20MS multi-material Blade 1 x 3 Piece hold down clamp 1 X Dust collection bag 1 x Dust port adaptor
