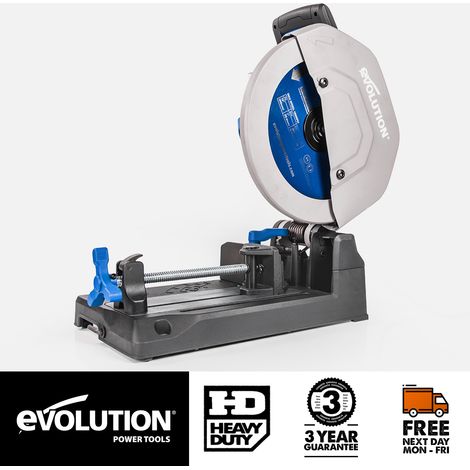

Evolution R355CPS 355mm Multi-Material Chop Saw with TCT Blade, 2200W, 240V

Sold by GravaHaus and 3 other sellers

Product information

Description

General description

This heavy-duty mitre saw is designed for precise cutting of various materials including wood, nails, composite decking, ferrous and non-ferrous metals, laminates, and plastics. It features a robust steel base with mounting holes for secure attachment to your workbench, ensuring stability during use. The saw is equipped with a moveable vice and clamping wall, allowing for quick and accurate mitre cuts up to 45 degrees. An included V-Block helps secure materials safely and cleanly during cutting.

Technical specifications

Motor Power: 2200W

No Load Speed: 1550 min^-1

Maximum Mitre Angle: 45°

Blade Diameter: 355mm

Number of Teeth: 36

Bore Diameter: 25.4mm (1 inch)

Kerf: 2.2mm

Cable Length: 2m

Dimensions (HxWxL): 410 x 530 x 310mm

Weight: 23kg

Compatibility and accessories

Includes V-Block for secure clamping of materials

Supplied with 355mm Multi-Material Cutting TCT Blade (Fitted)

Instruction Manual

8mm (Blade Change) Allen Key

Installation

Mount the saw securely onto a stable workbench using the provided mounting holes

Ensure the saw is properly connected to a power source

Usage

Adjust the mitre angle up to 45° for angled cuts

Use the moveable vice and clamping wall to hold materials firmly in place

Operate the saw with caution, following safety guidelines

Other information

Features

Brand
EVOLUTION POWER TOOLS
Power
2200 W
Warranty
1 year(s)
Width
53 cm
Length
31 cm
