Description
Dimensions and technical details
- Various sizes available

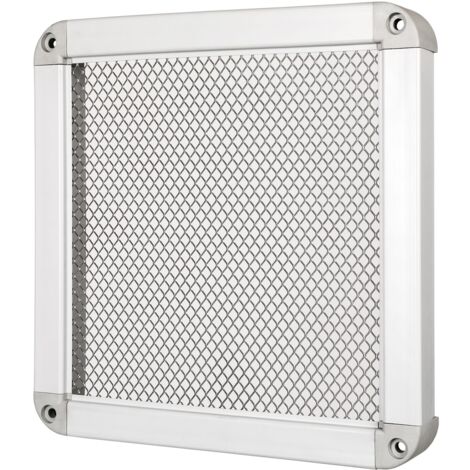

- Exterior wall grille for use with EQ, EQ MD, EQ HD, EQ ECO wall fan ranges
- Mounted to high-pressure side of the fan
- Material outer frame: synthetic profiles, colour light grey
- Material grille mesh: galvanised steel, 11 mm mesh size
- Protects accidental touch of the impeller from the outside in accordance with DIN 31001
- Mounted to walls with 4 drill holes (9 mm)
- Drill holes of the protective grille match the drill holes of the EQ fan series
| Model | Dimensions in mm | compatible with |
|---|---|---|
| SG-EQ 20 | 310 x 310 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 20 |
| SG-EQ 25 | 367 x 367 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 25 |
| SG-EQ 30 | 424 x 424 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 30 |
| SG-EQ 35 | 481 x 481 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 35 |
| SG-EQ 40 | 538 x 538 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 40 |
| SG-EQ 50 | 652 x 652 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 50 |
| SG-EQ 60 | 823 x 823 | Wall extractor fan EQ, EQ HD, EQ MD, EQ ECO 60 |
Features
- BrandCASAFAN
- Weight1.806 g
- MaterialSteel
- ColourLight grey
- Pcs per pack1
