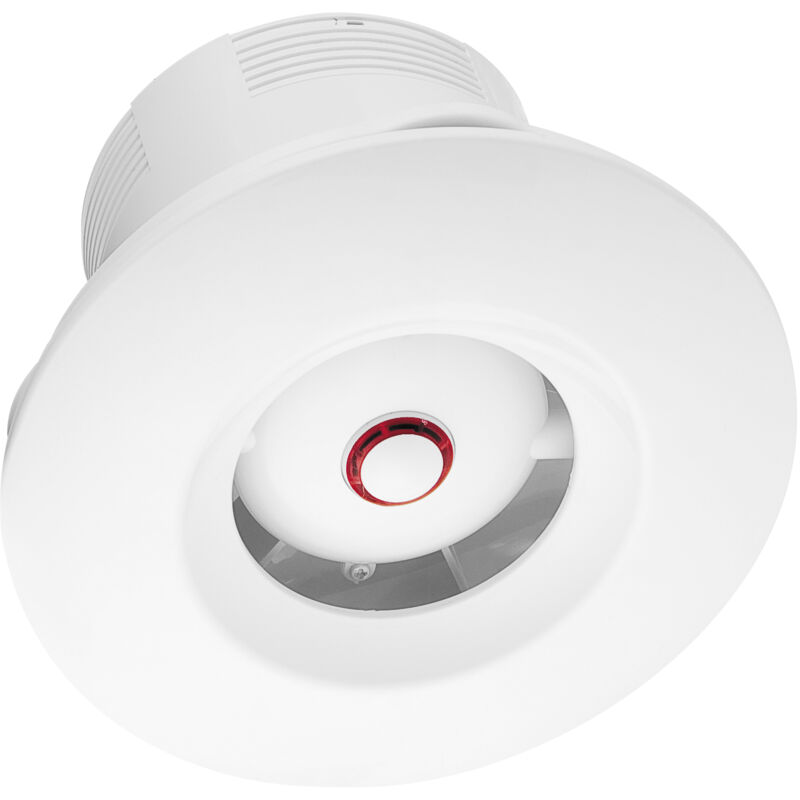

Extractor fan Orbit 100 H

Dimensions and technical details

• 220-240 V ~ 50 Hz
• Housing colour: white
• Housing material: UV-resistant ABS
• Nominal size: 100 mm
• Speed levels: 1
• Wattage: 13 W
• Revolutions per minute: 2600
• Max. airflow rate: 88 m³/h
• Sound pressure level Lp-3m: 38 dB(A)
• Total pressure Pmax.: 32 Pa
• IP rating: IPX4
• Max. ambient temperature: +40°C
• Diameter front cover: 160 mm
• Diameter pipe connection: 100 mm
• Length pipe connection: 77 mm
• Total length: 103 mm
• Weight: 0.7 kg
• Adjustable shut-off timer (3-30 min), humidity sensor (40-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value
• Mounting options: ceiling, wall
• Application: direct connection to the ventilation shaft
