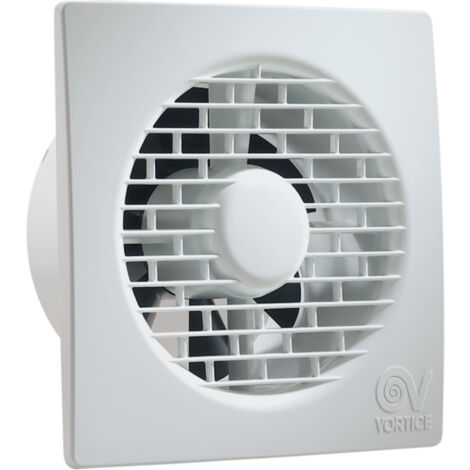

Extractor fan Filo MF 90 T

Product information

Description

General description

The Filo MF 90 T extractor fan is designed for efficient ventilation in various settings. Its compact design and powerful performance make it suitable for both wall and ceiling mounting, ensuring optimal airflow and comfort.

Technical specifications

Voltage: 220-240 V ~ 50 Hz

Housing colour: white

Housing material: UV-resistant ABS

Nominal size: 90 mm

Speed levels: 1

Wattage: 14 W

Current consumption: 0.08 A

Revolutions per minute: 2500

Max. airflow rate: 65 m³/h

Total pressure Pmax: 25 Pa

Sound pressure level Lp-3m: 28.8 dB(A)

Max. temperature for continuous operation: +50°C

IP rating: IPX4

Insulation class: II

Front cover dimensions: 159 x 159 x 17 mm

Total depth: 77 mm

Diameter duct connector: 92.5 mm

Weight: 0.5 kg

Other information

Adjustable shut-off timer (3-20 min): fan turns off after expiration of the pre-set time

Thermal overload protection

Integral backdraught valve prevents cold air from infiltrating the system

Features

Brand
VORTICE
Colour
White
Shape
Cylindrical
IP rating
IPX4
Material
Plastic
Air flow
65 m³/h
Aerator control type
Timer
With timer
Yes
Integrated non-return valve
Yes
Duct diameter
90 mm
Height
15.9 cm
Silent model
No
Weight
500 g
For bathroom
Yes
Power
14 W
Noise level
28.8 dB
Pcs per pack
1
Voltage
230 V
Type of lawn aerator
Classic
Type of installation method
For mounting
ManoMano Reference
ME2035436
MMID
370701667528
Product code
11126
EAN
8010300111261

Customer reviews

4,1

/ 74 Reviews

Reviews verified by ManoMano

MManoMano Customer

Published on 26/04/2024, France

good value for money. a little noisy. quick delivery.

1 person found this helpful

BBernard

Published on 25/08/2025, France

The product corresponds to what I was looking for. However, I don't understand why the casing (width, height) has such a large footprint for a diameter of only 90 mm. Its dimensions are larger than those of other brands for a diameter of 100 mm. I had to cut the casing on 2 sides.

LLaurent

Published on 22/09/2023, France

Installed in a bathroom, it does the job well. It makes noise but I find it normal. Easy to install and efficient

MManoMano Customer

Published on 11/11/2019, France

Perfect extraction but it is noisy

Vvitellaro Carlo

Published on 18/09/2023, France

Received quickly, works very well, and easy to install. Very attractive price

BBRUNO

Published on 12/10/2021, France

the advisor that I had online told me that the product is equipped with a non-return valve, it is a silly sheet of plastic, ashamed, because I paid the price
