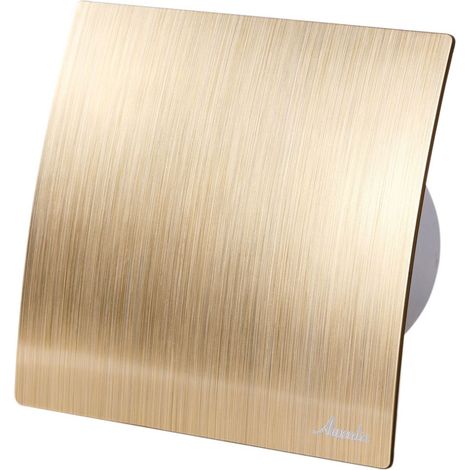

Extractor fan System Silent Escudo Gold 100 H

Dimensions and technical details

• 220-240 V ~ 50 Hz
• Front panel colour: gold
• Front panel material: ABS plastic
• Nominal size: 100 mm
• Speed levels: 1
• Wattage: 5 W
• Revolutions per minute: 1900
• Max. airflow rate: 75 m³/h
• Sound pressure level Lp-3m: 26 dB(A)
• Total pressure Pmax.: 26 Pa
• IP rating: IPX4
• Max. ambient temperature: +40°C
• Diameter pipe connection: 100 mm
• Front cover: 160 x 160 x 30 mm
• Total depth: 118 mm
• Weight: 0.7 kg
• Adjustable shut-off timer (3-30 min), humidity sensor (40-90%): fan turns off after expiration of the pre-set time once the humidity level falls below the pre-set value
• Mounting options: wall, ceiling
• Application: direct connection to the ventilation shaft
