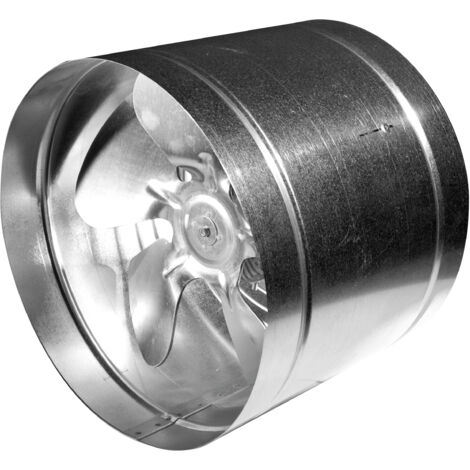

Inline fan WK 315

Sold by creoven

Often purchased together

Product information

Description

Dimensions and technical details

220-240 V ~ 50 Hz
Housing material: galvanised steel
Nominal size: 315 mm
Speed levels: 3
Wattage: 28 / 40 / 58 W
Revolutions per minute: 550 / 750 / 950
Airflow rate: 565 / 750 / 915 m³/h
Sound pressure level Lp-3m: 23 / 32 / 39 dB(A)
Total pressure Pmax.: 7 / 21 / 21 Pa
Max. operating temperature: +40°C
IP code: IPX4
Diameter: 326 mm
Length: 300 mm
Weight: 4.9 kg
Application: air supply or extraction depending on the fan position

Features

Brand
AWENTA
Colour
Grey
Shape
Cylindrical
Warranty
1 year(s)
IP rating
IPX4

Advice from

Bathroom extractor fan buying guide

Bathroom extractor fans renew stale air. The flow rate required to circulate the air is calculated using a formula based on the size of the bathroom. Air extractors, MEV systems, window or centrifugal extractor fans, read on for our tips on how to ventilate and banish humidity from the bathroom.
