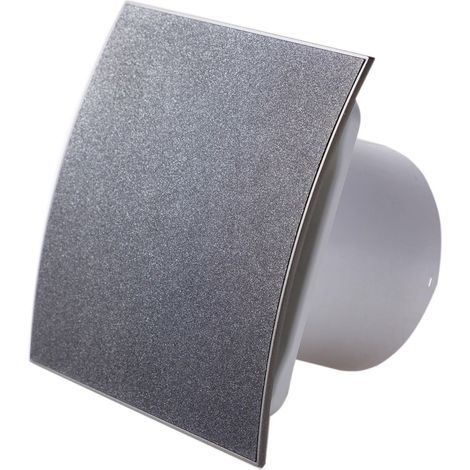

Extractor fan System Turbo Escudo Graphite 100 CTR

(£86.95/pc)

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Sold by creoven

Product information

Description

General description

The Extractor Fan System Turbo Escudo Graphite 100 CTR is designed for efficient ventilation in various settings. With a sleek graphite front panel made of durable ABS plastic, this fan combines functionality with modern aesthetics.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Nominal size: 100 mm

Speed levels: 4

Wattage: 5 / 8 / 9 / 14 W

Max. revolutions per minute: 2400

Airflow rate: 44 / 77 / 87 / 110 m³/h

Sound pressure level Lp-3m: 19 / 30 / 34 / 36 dB(A)

Total pressure Pmax.: 10 / 26 / 32 / 40 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 100 mm

Front cover dimensions: 160 x 160 x 30 mm

Total depth: 118 mm

Weight: 0.7 kg

Installation

Mounting options: wall, ceiling

Application: direct connection to the ventilation shaft

Usage

Speed regulation via push button

Adjustable timer: 5 / 10 / 20 / 30 min shut-off delay, 1 - 10 h interval

Features

Brand
AWENTA
Colour
Grey
Power
5 W
With timer
Yes
Max. flow rate
110 m³/h
Intended use
Indoor
Diameter
10 cm
Wall mounting possible
Yes
Height
11.8 cm
Reclining
Yes
IP rating
IPX4
Material
Acrylonitrile butadiene styrene (ABS)
Operating Mode
Electric
Weight
0.7 kg
Noise level
36 dB
Control
Manual control
Type of installation method
For mounting
Fan type
Ceiling fan
ManoMano Reference
ME54523604
MMID
446495906528
Product code
KWT100CTRPEGS
EAN
0745203007523
