Extractor fan Vega 125

Product information

Description

General description

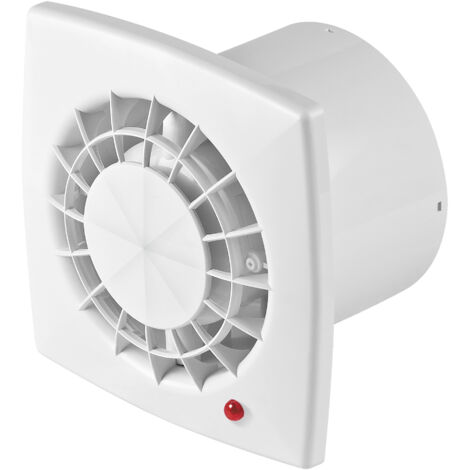

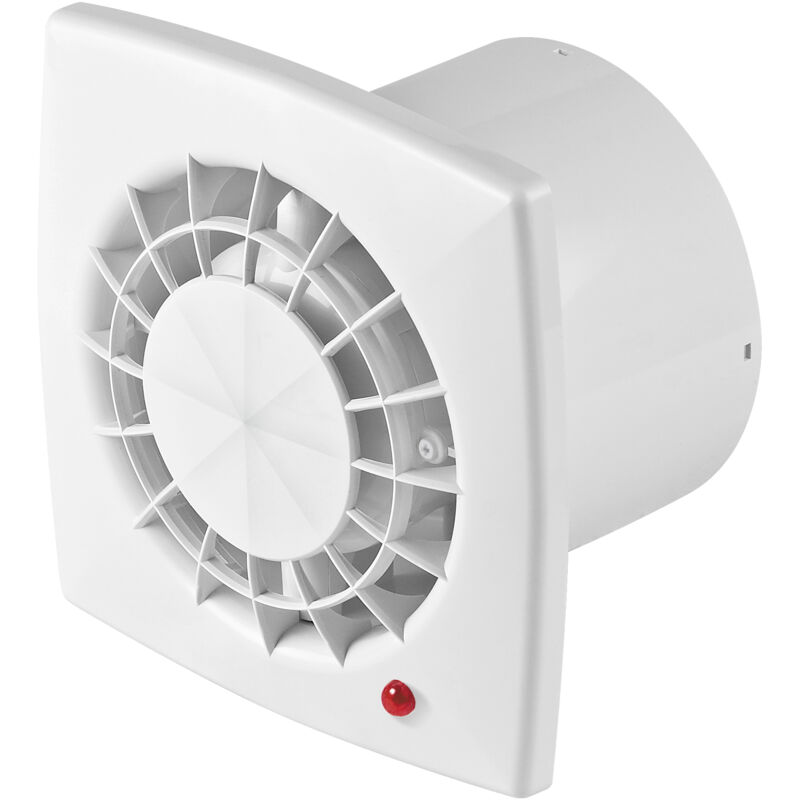

The Vega 125 extractor fan is designed for efficient ventilation in various settings. It features a sleek white housing made from UV-resistant ABS, ensuring durability and longevity. This fan is suitable for direct connection to ventilation shafts and can be mounted on walls or ceilings.

Technical specifications

Operating voltage: 220-240 V ~ 50 Hz

Nominal size: 125 mm

Wattage: 15 W

Speed levels: 1

Revolutions per minute: 2200

Max. airflow rate: 180 m³/h

Sound pressure level Lp-3m: 39 dB(A)

Total pressure Pmax.: 50 Pa

IP rating: IPX4

Max. ambient temperature: +40°C

Diameter pipe connection: 125 mm

Front cover dimensions: 172 x 172 x 18 mm

Total depth: 95 mm

Weight: 0.7 kg

Installation

Mounting options: wall or ceiling

On/off operation via a light switch (to be provided on-site)

Features

Brand
AWENTA
Colour
White
Width
12.5 cm
Power
15 W
Power source
Corded
With timer
No
Max. flow rate
180 m³/h
Intended use
Indoor
Diameter
12.5 cm
Wall mounting possible
Yes
IP rating
IPX4
Structure material
Plastic
Fan blade material
Acrylonitrile butadiene styrene (ABS)
Material
Acrylonitrile butadiene styrene (ABS)
Operating Mode
Electric
Weight
1.3 kg
Depth
9.5 cm
Noise level
39 dB
Fan type
Ceiling fan
ManoMano Reference
ME51308473
MMID
739027434522
Product code
WGB125
EAN
5905033304802
