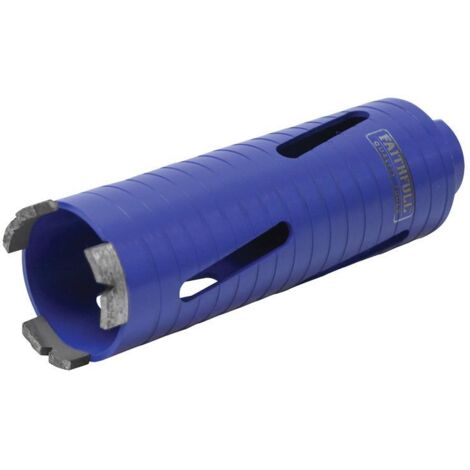

Dry Diamond Core Bit 52 x 150mm

Description

• This is a dry diamond core drill bit designed for cutting clean holes in brick and concrete blocks. It features a professional-quality 1/2 inch BSP threaded shank and premium 8mm fluted turbo-cut diamond segments for enhanced cutting performance and durability. The V-groove segments help in clearing debris during operation, ensuring efficient cutting. Suitable for use in plumbing, electrical, and general building installations.

Technical Specifications

• Diameter: 52mm
• Length: 150mm
• Thread: 1/2 inch BSP
• Segment type: Turbo cut diamond segments, 8mm thick
• Material: Diamond-coated segments for cutting hard materials
• Usage: Rotary only, not suitable for percussion or hammer mode
• Power requirement: Compatible with drills of 850W or higher, equipped with safety clutch and variable speed
• Maximum diameter for SDS Plus drills: 78mm

Compatibility and Accessories

• Compatible with rotary drills of 850W or more, with safety clutch and variable speed control
• Not suitable for use with percussion or hammer functions
• Best results achieved when used with a purpose-built core drilling machine

Installation

• Ensure the drill is suitable for diamond core bits and has a safety clutch and variable speed control
• Attach the core bit securely to the drill's chuck or appropriate arbor
• Set the drill to a low speed and gradually increase to optimal cutting speed
• Use water or a cooling lubricant if recommended, although this specific bit is designed for dry use

Usage

• Mark the drilling location clearly on the material
• Start drilling at a low speed to establish a hole, then increase speed gradually
• Apply steady pressure without forcing the bit
• Ensure the drill remains perpendicular to the surface for accurate cutting
• Remove debris periodically to maintain cutting efficiency

Other Information

• Designed for dry drilling in masonry materials such as brick and concrete blocks
• Use with compatible power drills to avoid damage
• Diamond cores provide precise and clean cuts, ideal for professional and DIY projects
