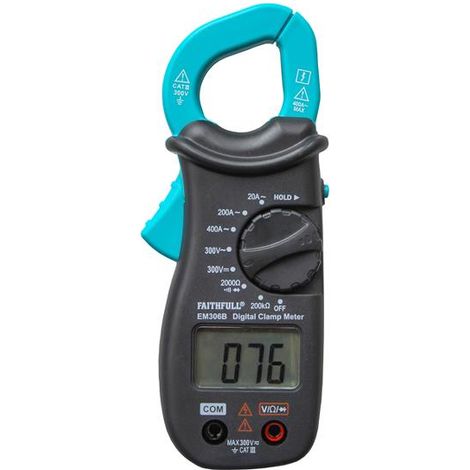

Faithfull Mini Clamp Meter Model FAIDETCLAMP – Compact Digital Clamp Multimeter for Electrical Testing
Buying for your business?
Negotiated prices excl. VAT up to -20%
Sold by GravaHaus and 3 other sellers
You may also like
Compare with similar items
Product information
Description
Description
- The Faithfull Mini Clamp Meter is a compact and versatile electrical testing tool suitable for laboratory, factory, warehouse, and home use. It combines a basic digital multimeter with a current sensor, allowing you to measure current and voltage easily. The device features a 3.1/2 digit LCD display and a data hold function to keep readings on screen. It can measure AC/DC voltage, AC current, resistance, and check diodes. Supplied with batteries, test leads, and a user manual.
Specifications
- Display: 3.1/2 digit LCD
- Clamp capacity: 25mm
- Maximum measurable conduction: 25mm
- Power supply: 3 x 3V CR2032 batteries (included)
- Dimensions: 151 x 65 x 34mm
- Weight: approximately 125g (excluding batteries)
- Voltage DC: up to 300V with input impedance of 9MΩ
- Voltage AC: up to 300V, frequency response 40~400Hz
- Current AC: 20/200/400A, frequency range 50~60Hz
- Resistance: 2000Ω / 200kΩ
- Diode check: resolution 1mV, open circuit voltage about 3V
- Continuity: less than 30Ω
Compatibility and Accessories
- Compatible with standard test leads and probes for voltage, resistance, and diode testing
- Supplied with batteries, test leads, and user manual
Installation
- Insert the batteries into the device as instructed in the manual
- Connect the appropriate test leads to the device for measuring voltage, resistance, or diode testing
Usage
- Use the clamp to measure current by opening the clamp jaws around a conductor
- Use the probes to measure voltage, resistance, or check diodes as needed
- Activate the data hold function to keep a reading on the display
Features
- BrandFAITHFULL
- Battery or cell includedYes
- Measured function(s)AC/DC current
- MaterialPlastic
- Display modeDigital
- Weight1000 g
- Voltage300 V
- ManoMano ReferenceME55636207
- MMID486317215334
- Product codeFAIDETCLAMP
- EAN5023969001265
