Product information

Description

General description

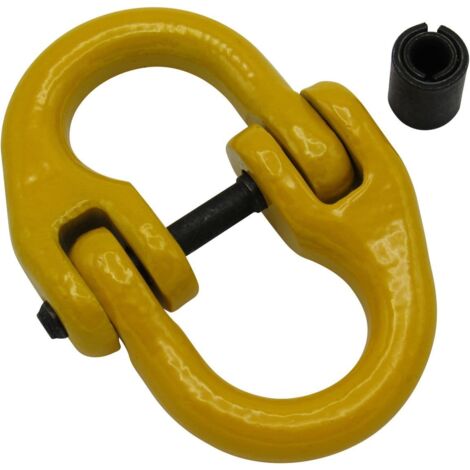

This G80 Chain Connector is a high-quality lifting component designed for use in the lifting gear industry. It serves as a connecting point for chain sling assemblies, ensuring reliable performance in various lifting applications.

Technical specifications

  • Chain Size: 20MM
  • Material: Grade 80 (G80)
  • Finish: Yellow (may vary)
  • Factor of Safety: 4:1
  • Conforms to: BS EN 1677
  • Product Codes and Specifications:
  • SFYASCC06 - SWL: 1.12 Ton, A: 16MM, B: 17MM, C: 42MM, D: 8MM, E: 57MM, F: 8.5MM
  • SFYASCC07 - SWL: 2 Ton, A: 15MM, B: 23.5MM, C: 57MM, D: 9MM, E: 76MM, F: 11MM
  • SFYASCC10 - SWL: 3.15 Ton, A: 20MM, B: 29MM, C: 71MM, D: 12.5MM, E: 96MM, F: 13.5MM
  • SFYASCC13 - SWL: 5.3 Ton, A: 22MM, B: 33MM, C: 84MM, D: 16MM, E: 115MM, F: 19MM
  • SFYASCC16 - SWL: 8 Ton, A: 26MM, B: 43MM, C: 106MM, D: 21MM, E: 144MM, F: 21MM
  • SFYASCC20 - SWL: 12.5 Ton, A: 33MM, B: 45.5MM, C: 116MM, D: 23MM, E: 165MM, F: 26MM
  • SFYASCC22 - SWL: 15 Ton, A: 38MM, B: 55.5MM, C: 138MM, D: 29MM, E: 190MM, F: 27.5MM
  • SFYASCC26 - SWL: 21.2 Ton, A: 42MM, B: 62.5MM, C: 157MM, D: 32MM, E: 220MM, F: 30MM
  • SFYASCC32 - SWL: 31.5 Ton, A: 46MM, B: 84MM, C: 195MM, D: 41MM, E: 280MM, F: 34MM

    • Other information

  • Test certificate will be supplied via email
  • Free delivery available

    • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Warranty
      1 year(s)
    • Pcs per pack
      1
    • Material
      Two-material
    • ManoMano Reference
      ME27136319
    • MMID
      634747651429
    • Product code
      SFYASCC20
    • EAN
      0600988486126
