G80 Chain Connector 22MM (Grade 80 15 Ton Lifting Component Connector 15T)

Sold by SecureFix Direct

You may also like

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim WomSECUREFIX DIRECT
#1 in sales

X10 25MM Zinc Plated Simplex Hooks - Dog Clip Lanyards Camping Craft Wim Wom

1
Free shipping
Stainless Steel Split Ring Connectors 1.5MM x 16MM x10 (Key Ring Chain Links)SECUREFIX DIRECT

Stainless Steel Split Ring Connectors 1.5MM x 16MM x10 (Key Ring Chain Links)

Free shipping
Stainless Steel Split Connecting Link 10MM (316 Grade Chain Quick Repair Mending Shackle)SECUREFIX DIRECT

Stainless Steel Split Connecting Link 10MM (316 Grade Chain Quick Repair Mending Shackle)

Free shipping
Quick Release Snap Hook with Swivel Eye Size 1 (83MM Stainless Steel Boat Shackle Attachment)SECUREFIX DIRECT

Quick Release Snap Hook with Swivel Eye Size 1 (83MM Stainless Steel Boat Shackle Attachment)

1
Free shipping
8MM X 110MM Galvanised Collared Eyebolt With Ring - Steel Eye Bolt Nut WasherSECUREFIX DIRECT

8MM X 110MM Galvanised Collared Eyebolt With Ring - Steel Eye Bolt Nut Washer

Free shipping
5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable ClipSECUREFIX DIRECT

5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable Clip

1
Free shipping
G80 Chain Connector 7MM (Grade 80 2 Ton Lifting Component Connector 2T)SECUREFIX DIRECT

G80 Chain Connector 7MM (Grade 80 2 Ton Lifting Component Connector 2T)

Free shipping
Large Eye Sling Hook with Safety Latch Stainless Steel 28MM (Trailer Chain Rope Wire)SECUREFIX DIRECT

Large Eye Sling Hook with Safety Latch Stainless Steel 28MM (Trailer Chain Rope Wire)

Free shipping
Stainless Steel C Ring 19MM (Chain Link Replacement Marine Grade Repair)SECUREFIX DIRECT

Stainless Steel C Ring 19MM (Chain Link Replacement Marine Grade Repair)

Free shipping
12MM Wire Rope Grips x10 - DIN741 Galvanised Commercial Cable Bulldog ClipSECUREFIX DIRECT

12MM Wire Rope Grips x10 - DIN741 Galvanised Commercial Cable Bulldog Clip

Free shipping
G80 Chain Connector 13MM (Grade 80 5.3 Ton Lifting Component Connector 5.3T)SECUREFIX DIRECT

G80 Chain Connector 13MM (Grade 80 5.3 Ton Lifting Component Connector 5.3T)

Free shipping
20MM 4 Ton Grade 80 FRAM Round Ring 20.O.7 - Masterlink Lifting Blue Powdercoated EN1677-1SECUREFIX DIRECT

20MM 4 Ton Grade 80 FRAM Round Ring 20.O.7 - Masterlink Lifting Blue Powdercoated EN1677-1

Free shipping
8MM Short Link Chain Stainless Steel DIN766 (Anchor 316 Grade)SECUREFIX DIRECT

8MM Short Link Chain Stainless Steel DIN766 (Anchor 316 Grade)

1
Free shipping
25MM Galvanised Chain Anchor Swivel - 1" Marine Mooring Boat SwivelSECUREFIX DIRECT

25MM Galvanised Chain Anchor Swivel - 1" Marine Mooring Boat Swivel

Free shipping
Ground-mounted trailer D-rings, 580 kg capacity (pack of 10)SHMSHNG

Ground-mounted trailer D-rings, 580 kg capacity (pack of 10)

2
£32.58
10PCS M5 Carabiner Clip Heavy Duty, 304 Stainless Steel Carabiner Clips, Metal Clips Key Ring Spring Snap Clips for Hiking Camping Boating Fishing Dog Leash Leisure Outdoor ActivitiesTOOLIVE

10PCS M5 Carabiner Clip Heavy Duty, 304 Stainless Steel Carabiner Clips, Metal Clips Key Ring Spring Snap Clips for Hiking Camping Boating Fishing Dog Leash Leisure Outdoor Activities

3
Free shipping
[NEVER USED] M5 Carabiners 304 Stainless Steel Firefighter Spring Carabiner with Snap Hook for Camping Hiking Hammock Swing 6Pcs

[NEVER USED] M5 Carabiners 304 Stainless Steel Firefighter Spring Carabiner with Snap Hook for Camping Hiking Hammock Swing 6Pcs

1
20 pieces M6 stainless steel carabiner hooks, heavy load capacity 120 kg/260 lbs, 304 swivel hook 60 mm x 6 mmCOOCHEER

20 pieces M6 stainless steel carabiner hooks, heavy load capacity 120 kg/260 lbs, 304 swivel hook 60 mm x 6 mm

1
3-way + shaped distributor with 3 ball valves to connect 3 devices/1/2" connectors
#1 in sales

3-way + shaped distributor with 3 ball valves to connect 3 devices/1/2" connectors

£57.99
Free shipping
Stainless steel reducer for flue pipes, chimney adapter, stove pipe, stainless steel reducer, flue pipe, stove pipe (90-80 mm)
#1 in sales

Stainless steel reducer for flue pipes, chimney adapter, stove pipe, stainless steel reducer, flue pipe, stove pipe (90-80 mm)

Compare with similar items

Product information

Description

General description

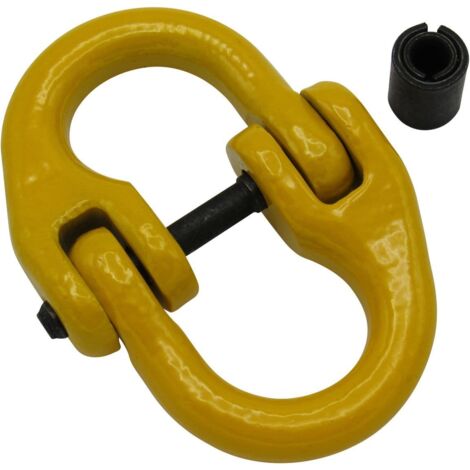

This G80 Chain Connector is a high-quality lifting component designed for use in the lifting gear industry. It serves as a connecting point for chain sling assemblies, ensuring reliable performance and safety during lifting operations.

Technical specifications

  • Chain Size: 22MM
  • Material: Grade 80 (G80)
  • Finish: Yellow (may vary)
  • Factor of Safety: 4:1
  • Conforms to: BS EN 1677
  • Product Codes and Specifications:
  • SFYASCC06: SWL 1.12T, A 16MM, B 17MM, C 42MM, D 8MM, E 57MM, F 8.5MM
  • SFYASCC07: SWL 2T, A 15MM, B 23.5MM, C 57MM, D 9MM, E 76MM, F 11MM
  • SFYASCC10: SWL 3.15T, A 20MM, B 29MM, C 71MM, D 12.5MM, E 96MM, F 13.5MM
  • SFYASCC13: SWL 5.3T, A 22MM, B 33MM, C 84MM, D 16MM, E 115MM, F 19MM
  • SFYASCC16: SWL 8T, A 26MM, B 43MM, C 106MM, D 21MM, E 144MM, F 21MM
  • SFYASCC20: SWL 12.5T, A 33MM, B 45.5MM, C 116MM, D 23MM, E 165MM, F 26MM
  • SFYASCC22: SWL 15T, A 38MM, B 55.5MM, C 138MM, D 29MM, E 190MM, F 27.5MM
  • SFYASCC26: SWL 21.2T, A 42MM, B 62.5MM, C 157MM, D 32MM, E 220MM, F 30MM
  • SFYASCC32: SWL 31.5T, A 46MM, B 84MM, C 195MM, D 41MM, E 280MM, F 34MM

    • Other information

  • Test certificate will be supplied via email
  • Free delivery available

    • Features

    • Brand
      SECUREFIX DIRECT
    • Weight
      100 g
    • Warranty
      1 year(s)
    • Pcs per pack
      1
    • Material
      Two-material
    • ManoMano Reference
      ME27137534
    • MMID
      834941467176
    • Product code
      SFYASCC22
    • EAN
      0600988486133
