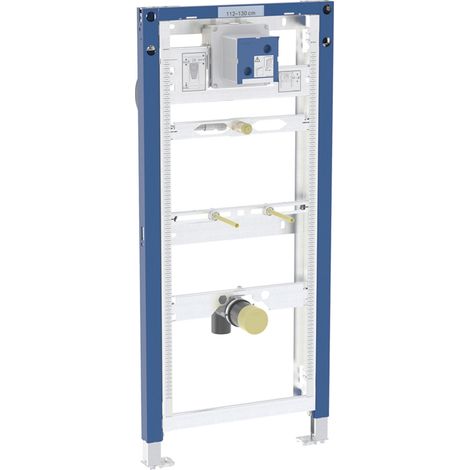

Geberit Duofix Universal Urinal Frame for Spray Head 500mm W x 1120 - 1300mm H - Blue
Sold by Heat & Plumb
You may also like
Compare with similar items
Product information
Description
Features and Benefits:
- Geberit Urinal Frame with adjustable height designed for modern urinals featuring spray head flushing
- Suitable for metal or wood-frame walls and adaptable to room-height or part-height pre-walls
- Flexible solution ideal for commercial and public restroom installations
- Built for durability with corrosion-resistant materials and a powder-coated finish
- Features tool-free connectors for fast and simple installation
- Pre-configured mounting points compatible with Geberit Preda and Selva urinals
- Supports Geberit urinal flush controls with integrated concealed housing and electrical connections
- Adjustable element height from 1120-1300mm to suit different urinal sizes
- Universal application compatible with various pre-wall and partition setups
- Statically self-supporting frame construction ensures long-term strength and stability
- Integrated universal concealed housing for spray head flush systems
- Height-adjustable, sound-absorbing urinal fasteners reduce operational noise
- Built-in conduit pipe and flush hose with guide prevent stagnant water buildup
- Compact 105 x 105 mm service opening cover easily cut to length for maintenance access
- Suitable for high-traffic commercial bathrooms, public toilets, offices, schools, and healthcare facilities
- Flow pressure range: 1-8 bar
- Test pressure (water): max. 16 bar
- Test pressure (air): max. 3 bar
- Maximum operating temperature: 30 degrees celsius
- Flow rate at 1 bar: 18 L/min (no limiter) / 10.8 L/min (with limiter)
- Includes 1/2 BSP elbow tap connector
- PE-HD connection bend (63/50 mm)
- Urinal trap (50 mm) with seal
- Protection box with cover
- Fastening and protection materials included
- Supplied with a 10 year guarantee from the manufacturer
| Wall Hung Frame Type | Urinal |
|---|---|
| Frame Height | 1120-1300mm |
| Frame Width | 500mm |
| Frame Depth | 75mm |
| Mounting | Wall |
| Material | Steel |
| Colour | Blue |
| Style | Modern |
| Market | Domestic |
| Brand | Geberit |
| Collection | Duofix |
| EAN Barcode | 4064746030963 |
| Manufacturer Part Number(s) | 111.676.00.2 |
Features
- BrandGEBERIT
- Length114.1 cm
- MaterialMetal
- ColourBlue
- Warranty2 year(s)
