General description

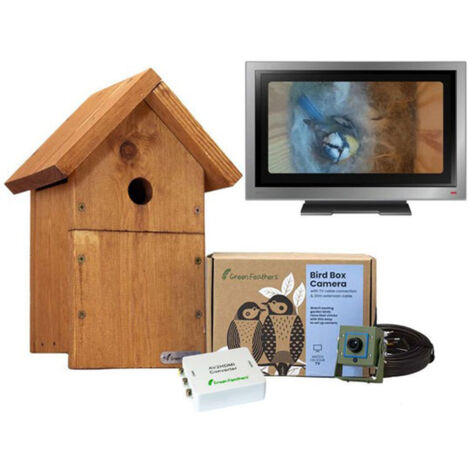

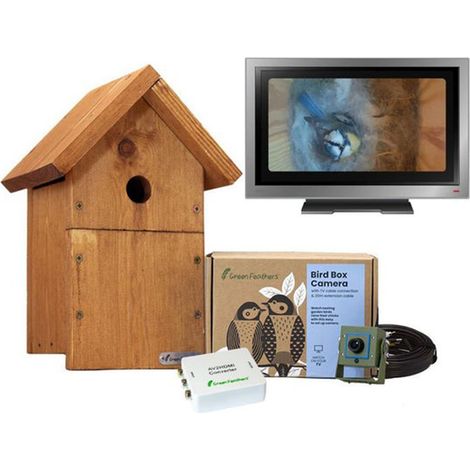

Day or night, our classic wired bird box camera is the simplest way to get started with wildlife watching in your garden. It now features an improved IR filter with an infrared cut, allowing you to see top-quality, true-to-life color images. Simply place it in your bird box, and the included 3-way cable will transmit all the feathered activity to your TV. Additionally, we’ve included an RCA to HDMI converter for easy connection to a universal HDMI setup.Technical specifications
- Bird Box Dimensions: 340mm x 250mm x 190mm
- Wood Thickness: 21mm
- Entrance Hole: 32mm
- Camera Video: PAL/NTSC
- Camera Resolution: 700 TV Lines
- Image Form: JPEG
- Image Pixels: 512 x 582
- Video Form: AVI
- Minimum Illumination: 1 Lux
- Lens: Super Wide 2.8mm
- White Balance: Auto
- S/N Ratio: >48dB (AGC Off)
- Backlight Compensation: Auto
- Electronic Shutter: 1/50 (1/60) - 1/100,000 seconds
- Operation Temperature: -20 to 50 degrees Celsius
- Power Supply: DC 8V 500mA
- HDMI Adapter Video Input: 1x Composite RCA
- Power Input: USB
- Output: 1x HDMI
- Video Mode: PAL, NTSC
- HDMI Output: 1080p/60Hz, 720p/60Hz
- HDMI Adapter Dimensions: 66x55x20mm
- HDMI Adapter Weight: 40g
- Camera Dimensions: 44×44×33 mm
- Power Consumption: IR OFF = 1W, IR ON = 1.2W
Compatibility and accessories
- Includes a 20m cable that carries both power to the box and video back to your TV.
- RCA to HDMI converter included for easy connection to HD TVs and monitors (HDMI cable not included).
Installation
- Features a simple central mounting point for easy camera installation.
- Air vents allow for easy cable management into the bird box.
Usage
- Connect to your TV using the included cable to view live footage.
- Consider adding an LED lamp to the nesting box for clearer daytime images.
