Product information

Description

General description

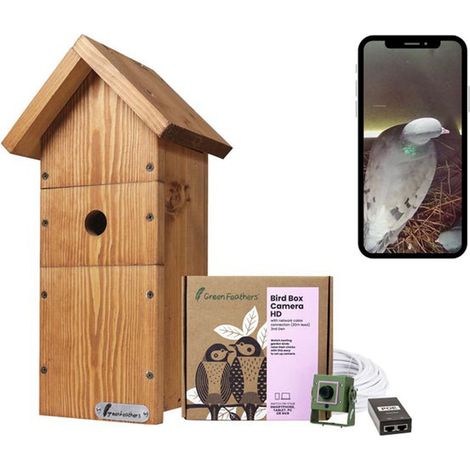

Day or night, this DIY Deluxe Bird Box Kit with 1080p IP Camera provides a fantastic way to observe the wildlife in your garden. The handmade wooden bird box is purpose-built from sustainable materials to fit the camera, allowing you to watch the feathered frolicking directly on your smartphone, tablet, or PC.

Technical specifications

Imaging Chip: 1/2.9" Low light CMOS
Sensor Resolution: 1080p
Sensitivity: 0.01Lux (IR off), 0.001Lux (IR On)
Main Stream Resolution: 1920x1080 @ 25fps, 720p @ 25fps, supports 2560x1440 @ 20fps, 2304x1296 @ 20fps
Sub Stream Resolution: 4CIF @15fps, CIF @25fps
Video Compression: H.264
DWDR: On/Off
3D DNR: Yes
Lens: 2.8mm
Field of View: 92°
Lens Mount: Board
Day & Night: Auto ICR switch
Configuration: Via web browser or CMS software
Recording: Continuous, Motion, Scheduled (via CMS)
Protocol: HTTP, TCP/IP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPNP, NTP, 802.1x
Ethernet: 10/100 Base-T, Auto-sensing, Half/full duplex, RJ45
PoE: IEEE 802.3af compliant
Power Input: 12V DC or PoE
Power Consumption: 3.5W IR off, 7.5W IR on
Dimensions: 43x43x21mm (excluding cables & bracket)
Operating Temperature: -20°c to +55°c
Operating Humidity: 10-80%
Power Consumption: IR OFF = 1W IR ON = 1.2W

Compatibility and accessories

Bird Box Specifications:
Wood Thickness: 21mm
Entrance Hole: 32mm
Dimensions: 470x250x190mm

Installation

Setting up the camera is straightforward: simply connect the power, mount the camera, and connect the network cable to your router.

Usage

This kit allows you to watch live footage from your bird box on your smartphone or tablet using the free app available on iOS and Android. The camera captures high-quality images in 4MP at 25fps, providing true-to-life colors of the birds. The built-in night vision with invisible infrared LEDs enables 24/7 viewing without disturbing the birds.

Other information

Note: Treat with care, there may be signs of wear & tear if completely neglected.

Features

Brand
GREEN FEATHERS
Colour
Green
Material
Wood
Height
19 cm
Width
25 cm
Mounting method
To screw
Weight
4.27 g
Feeder type
To hang
ManoMano Reference
ME49693724
MMID
921005649346
Product code
GFGrnFethrDIYDeluxeBiNCIP220MBB
EAN
5056384703360
