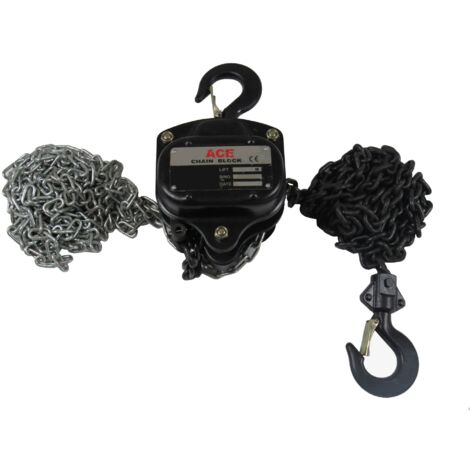

Heavy Duty Chain Block & Tackle with Bag 0.5 Ton 10 Metre (500KG 0.5T 10M Lifting Hoist)

Product out of stock

Product information

Description

General description

Heavy Duty Chain Block & Tackle with Bag is designed for lifting loads up to 0.5 Ton (500KG) with a maximum lift height of 10 Metres. This chain block features a lightweight steel construction for ease of use and transport, along with a chain guide that ensures smooth chain operation. The safety hooks are drop forged and heat treated for enhanced safety and durability. Each unit is supplied with a test certificate sent via email.

Technical specifications

Safe Working Load: 0.5 Ton (500KG)

Lift Height: 10 Metres

Minimum Distance Between Hooks: 290MM

Chain Falls: 1

Load Chain Diameter: 5MM

Hand Chain Length: 9.8 Metres

Factor of Safety: 4:1

Bag Height/Depth: 230MM

Bag Length: 110MM

Bag Width: 90MM

Bolt Length: 60MM

Bolt Diameter: 6MM

Compatibility and accessories

Chain Bag compatible with Chain Block sizes: 0.5 Ton 3 Metre, 6 Metre & 10 Metre

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Colour may vary; contact for specific colour requests

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
500 kg
Supplied with hauling pulley
Yes
Work cable length
9.8 m

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
