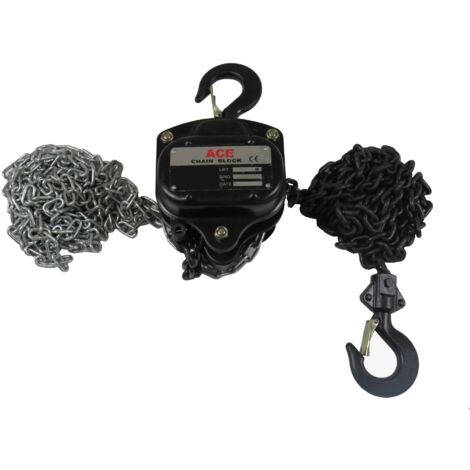

Heavy Duty Chain Block and Tackle with Bag 10 Ton 6 Metre (10000KG 10T 6M Lifting Hoist)

You may also like

Hoist Frame 600 kg vidaXLVIDAXL
3 options

Hoist Frame 600 kg vidaXL

147
Free shipping
4-Way Fairlead Steel 1500-3000 lbs vidaXLVIDAXL
4 options

4-Way Fairlead Steel 1500-3000 lbs vidaXL

18
Free shipping
4-Way Fairlead Steel 3500-4500 lbs vidaXLVIDAXL
4 options

4-Way Fairlead Steel 3500-4500 lbs vidaXL

18
Free shipping
4-Way Fairlead Steel 5000-6000 lbs vidaXLVIDAXL
4 options

4-Way Fairlead Steel 5000-6000 lbs vidaXL

18
Free shipping
4-Way Fairlead Steel 8000-13000 lbs vidaXLVIDAXL
4 options

4-Way Fairlead Steel 8000-13000 lbs vidaXL

18
Free shipping
Hoist Frame 300-600 kg vidaXLVIDAXL
3 options

Hoist Frame 300-600 kg vidaXL

147
Free shipping
Hoist Frame 1000 kg vidaXLVIDAXL
3 options

Hoist Frame 1000 kg vidaXL

147
Free shipping
Hand Winch 3200 kg vidaXLVIDAXL

Hand Winch 3200 kg vidaXL

2
Free shipping

Compare with similar items

Product information

Description

General description

This Heavy Duty Chain Block and Tackle is designed for lifting heavy loads with a safe working load of 10 tons (10000KG) and a lifting height of 6 metres. It features a robust construction with a chain guide for smooth operation and is lightweight for easy transport. The safety hooks are drop forged and heat treated for enhanced durability and safety.

Technical specifications

  • Safe Working Load: 10 Ton (10000KG)
  • Lift Height: 6 Metres
  • Minimum Distance Between Hooks: 700MM
  • Chain Falls: 4
  • Load Chain Diameter: 10MM
  • Hand Chain Length: 5.7 Metres
  • Overall Max Length: 6.8 Metres
  • Chain Overhang: 12 Metres
  • Chain Block Height: 460MM
  • Lower Hook + Bracket Length: 390MM
  • Lower Hook / Top Hook Opening: 49MM
  • Max Pin Size For Top Hook + Lower Hook: 73MM
  • Factor Of Safety: 4:1
  • Compatibility and accessories

  • Chain Bag Size: Suits Chain Block Size - 10 Ton 6M, 10M
  • Bag Height/Depth: 500MM
  • Bag Length: 230MM
  • Bag Width: 160MM
  • Bolt Length: 91MM
  • Bolt Diameter: 12MM
  • Other information

  • Supplied with Test Certificate (sent via email)
  • Colour may vary; contact for specific colour requests
  • Ideal for theatre and stage applications
  • Features

    • Brand
      SECUREFIX DIRECT
    • Warranty
      1 year(s)
    • Maximum load
      80 kg
    • Supplied with hauling pulley
      Yes
    • Work cable length
      6 m
    Advice from

    Hoist buying guide

    A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
