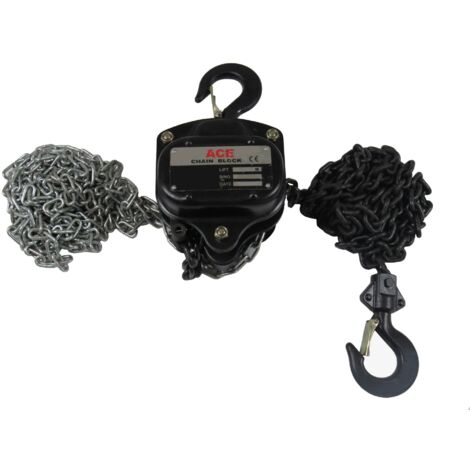

Heavy Duty Chain Block and Tackle with Bag 3 Ton 10 Metre (3000KG 3T 10M Lifting Hoist)

Name: Heavy Duty Chain Block and Tackle with Bag 3 Ton 10 Metre (3000KG 3T 10M Lifting Hoist)
Brand: SECUREFIX DIRECT
SKU: SFACECB310/SFACEB05
Price: 337.6 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

Heavy Duty Chain Block and Tackle with Bag is designed for lifting heavy loads with a safe working load of 3 tons (3000KG) and a lifting height of 10 metres. This chain block features a lightweight steel construction for ease of use and transport, along with a chain guide that ensures smooth chain operation. The safety hooks are drop forged and heat treated for enhanced safety and durability. Supplied with a test certificate, this product is ideal for various lifting applications.

Technical specifications

Safe Working Load: 3 Ton (3000KG)

Lift Height: 10 Metres

Minimum Distance Between Hooks: 540MM

Chain Falls: 2

Load Chain Diameter: 7MM

Hand Chain Length: 9.8 Metres

Factor Of Safety: 4:1

Chain Bag Height/Depth: 500MM

Chain Bag Length: 130MM

Chain Bag Width: 120MM

Bolt Length: 67MM

Bolt Diameter: 8MM

Compatibility and accessories

Chain Bag suitable for Chain Block sizes: 3 Ton 6M, 10M

Other information

Conforms to: BS EN 13157: 2004+A1: 2009

Test certificate supplied (sent via email)

Colour may vary; contact for specific colour requests

Features

Brand
SECUREFIX DIRECT
Warranty
1 year(s)
Maximum load
3000 kg
Supplied with hauling pulley
Yes
Material
Two-material

Advice from

Hoist buying guide

A hoist can be manual, electric, pneumatic or hydraulic. With the manual models, the hoist is composed chains and can include a lever. It allows to lift loads of 500 kg, 2 tons, 3 t or 5 t. The electric hoist offers more comfort and is often move on a trolley. It can efficiently lift and lower loads with precise accuracy.
