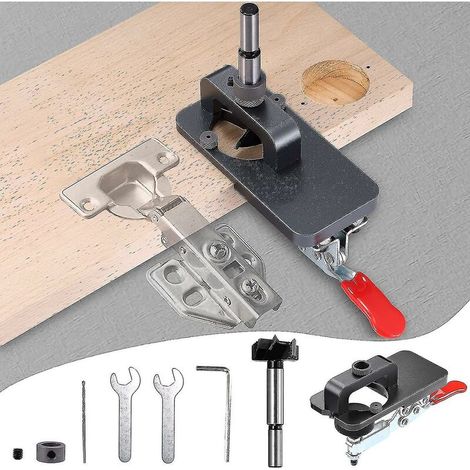

Hinge Jig 35mm Hole Opener, Precise 35mm Cabinet Hinge Drill Hole Puncher

Sold by Home Place GmbH and 1 other seller

Product information

Description

Pose 1. Install a 35mm hole opener, adjust the drilling depth to 12-13mm, then lock the limit ring. 2. Adjust the fixed size of the quick clip black pressing block (Note: the tool adjustable fixed board size is 15-25mm). 3. Move the puncher to the board marking and drilling position and lock the quick clamp. 4. Tighten the drill handle, press the hole to a depth of 12-13mm at a constant speed, then drill 2mm screw holes on the left and right sides. Alloy material Durable and Precise Aluminum - The 35mm hinge drilling tool is made of aluminum alloy material, precision manufacturing, precise positioning, convenient operation and durable. a long service life. Easy to use for mounting concealed hinges - The hinge drilling jig is a DIY woodworking tool, easy to use, suitable for home use by yourself, no professional is required. Adjustable dial design is limited to 3, 4, 5 and 6mm, which is very accurate and easy to measure. Wide Application of Wood Dowel Drill Guide Locator - 35mm Bore Hole Installation, Door Bore Hole Positioning, Woodworking Hole Auxiliary Tool, The Distance Between Hole 35mm and the edge is 5mm, which is suitable for most common hinges. 35mm Cabinet Hinge Jig Drill Hole Puncher Packing List - 1*body of hinge drill locator, 1 * 35mm hole opener (with limit ring), 2 * spanner, 1 * 2mm drill bit, 1 * Allen key.

Features

Brand
ORCHIDÉE
Material
Aluminium
Pcs per pack
1
Colour
Black
Chuck diameter
35 mm
Height
1 cm
Compatible drill
Standard drill
Weight
100 g
Type of drill accessory
Jig
Diameter
3.5 cm
ManoMano Reference
ME71709559
MMID
285499215630
Product code
Mano-WZ-39266
EAN
6220058447396
