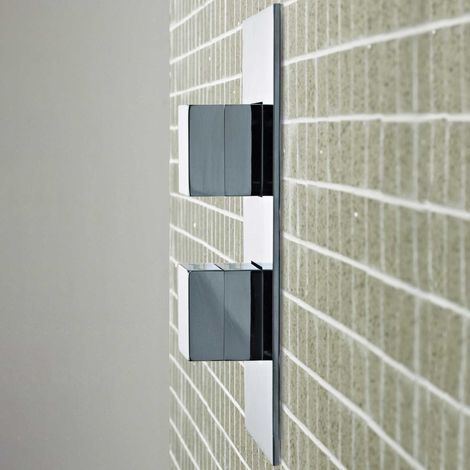

Hudson Reed Lennox Concealed Shower Valve Dual Handle - Chrome

Name: Hudson Reed Lennox Concealed Shower Valve Dual Handle - Chrome
Brand: HUDSON REED
SKU: SQR3210
Price: 231.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

A stylish bathroom is something that many of us want to achieve, which is why we turn to experienced and professional bathroom accessory designers such as Hudson Reed. Part of their Lennox range, this Concealed Shower Valve features a Dual Handle that is both beautiful and functional, perfect for your family bathroom space. It can be combined with a number of shower heads to create a modern look that is sure to impress.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 2

Valve Position: Concealed

Valve Shape: Rectangular

Handle Type: Square

Shower Valve Outlets: 1

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Shower Valve Height: 215 mm

Shower Valve Width: 120 mm

Inlet Connection Size: 15 mm & 1/2 BSP

Material: Brass/ABS

Colour: Chrome

Weight: 3 Kg

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14 l/min

Flow Rate @ 1.0 Bar: 20 l/min

Flow Rate @ 2.0 Bar: 29 l/min

Flow Rate @ 3.0 Bar: 44 l/min

WRAS Approval Number: 250602040

EAN Barcode: 5055369051717

Manufacturer Part Number(s): SQR3210

Compatibility and accessories

Suitable for use with all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Installation

Can be fitted vertically or horizontally

The cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed

Simply remove the cartridge, turn it 180 degrees, and replace

Usage

Offers accurate flow control

Thermostatic control maintains temperature to +/- 2 degrees even if water pressure fluctuates

In the event of hot or cold water failure, the valve will shut down the water supply, providing full thermal protection and preventing scalding

The unique cartridge is highly resistant to calcium build-up, even in hard water areas

Other information

20-year guarantee against faulty workmanship or materials (1 year on serviceable and moving parts)

WRAS approved product

Features

Brand
HUDSON REED
Material
Brass
Intended use of the tap
Shower
Shape
Rectangular
Height
21.5 cm
Spout height
21.5 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Number of outlets
1
Weight
3 kg
Max pressure
3 bar
Pressure
3 bar
Concealed tap
Yes
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Dual-lever mixer
ManoMano Reference
ME117917
MMID
842633984676
Product code
SQR3210
EAN
5055369051717
