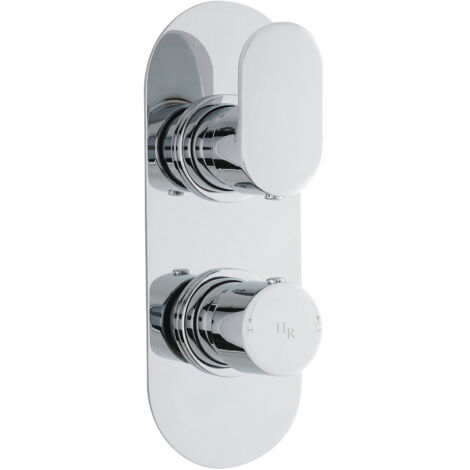

Hudson Reed Reign Round Concealed Shower Valve with Diverter Dual Handle - Chrome
Sold by Heat & Plumb
You may also like
Compare with similar items
Product information
Description
Features and Benefits:
- Shower valve supplies water to 2 outlets
- Manufactured from high quality brass & ABS
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 degree C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The unique cartridge is highly resistant to calcium build up - even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates - even at low pressure
- Twin handle valve with diverter
- TMV2 Approved
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts), please see manufacturer guarantee policy for more information
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 2 |
| Shower Valve Position | Concealed |
| Valve Shape | Oval |
| Handle Type | Lever/Round |
| Shower Valve Outlets | 2 |
| Minimum Pressure | 0.5 Bar |
| Maximum Pressure | 3.0 Bar |
| Shower Valve Height | 215mm |
| Shower Valve Width | 80mm |
| Shower Valve Depth | 72 - 85mm |
| Inlet Connection Size | 15mm & 22mm |
| Valve Orientation | Portrait |
| Material | Brass,ABS |
| Colour | Chrome |
| Brand | Hudson Reed |
| Collection | Reign |
| Style | Modern |
| Market | Domestic |
| WRAS Approved | Yes |
| WRAS Approval Number | 250602040 |
| TMV2 Approved | Yes |
| TMV2 Approval Number | 2603035 |
| Flow Rate @ 0.5 Bar | 13 l/min |
| Flow Rate @ 1.0 Bar | 17 l/min |
| Flow Rate @ 2.0 Bar | 24 l/min |
| Flow Rate @ 3.0 Bar | 27 l/min |
| Weight | 2.9 Kg |
| EAN Barcode | 5055369010172 |
| Manufacturer Part Number(s) | REI3407 |
Features
- BrandHUDSON REED
- Length8.5 cm
- Width8 cm
- Height21.5 cm
- Weight2.9 kg
