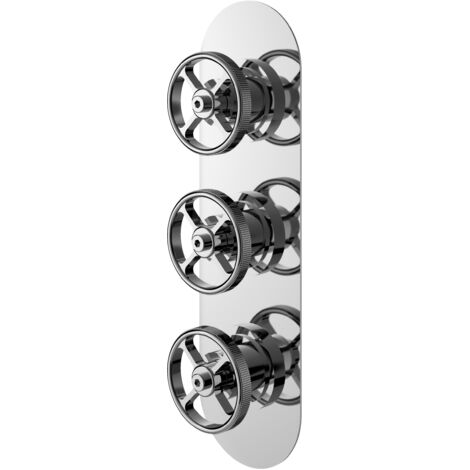

Nuie Revolution Concealed Shower Valve with Diverter Triple Handle - Chrome

Name: Nuie Revolution Concealed Shower Valve with Diverter Triple Handle - Chrome
Brand: HUDSON REED
SKU: SIWTR03
Price: 267.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

Features and Benefits:

Shower valve supplies water to 3 outlets
Industrial design with stunning chrome finish
Suitable for use with all systems: gravity fed pumped unvented high pressure of fully modulated combi-boilers
Accurate flow control
Excellent flow rates - even at low pressure
Full thermostatic protection to prevent scalding in the event of hot or cold water shut off
In the event of hot or cold water failure the valve will shut down as per the relevant standard
The patented cartridge is highly resistant to calcium build up - even in hard water areas
During installation extra care must be taken to avoid damaging the fittings
TMV2 Approved
Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts), please see manufacturer guarantee policy for more information

Shower Type	Thermostatic
Shower Valve Controls	3
Shower Valve Position	Concealed
Valve Shape	Oval
Handle Type	Wheel Head
Shower Valve Outlets	3
Minimum Pressure	0.5 Bar
Shower Valve Height	280mm
Shower Valve Width	80mm
Shower Valve Depth	72-85mm
Inlet Connection Size	22mm & 3/4 BSP
Valve Orientation	Portrait
Material	Brass/ABS
Colour	Chrome
Brand	Nuie
Collection	Revolution
Style	Modern
Market	Domestic
Flow Rate @ 0.5 Bar	13 l/min
Flow Rate @ 1.0 Bar	17 l/min
Flow Rate @ 2.0 Bar	24 l/min
Flow Rate @ 3.0 Bar	27 l/min
WRAS Approved	Yes
WRAS Approval Number	250602040
TMV2 Approved	Yes
TMV2 Approval Number	2603035
Weight	3.8 Kg
EAN Barcode	5056211855163
Manufacturer Part Number(s)	SIWTR03

Features

Brand
HUDSON REED
Colour
Copper
NF certification
NF136
Warranty
1.66667 year(s)
Material
Brass
Adapted for PRM
Yes
With waste included
Yes
With anti-limescale function
Yes
Intended use of the tap
Shower
Hand shower included
Yes
Pull-out spray
Yes
Water saving
Yes
Shape
Oval
Height
28 cm
Flow limiter
Yes
Temperature limiter
Yes
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Weight
3.8 kg
Pressure
3 bar
Concealed tap
Yes
Wall-mounted tap
Yes
38°C Safety
Yes
Max adjustable temperature
38 °C
Tap head only
Yes
Cool body thermostatic
Yes
Type of installation method
For mounting
Tap type
Dual-lever mixer
ManoMano Reference
ME13179584
MMID
147192292670
Product code
SIWTR03
EAN
5056211855163

Visit the HUDSON REED store

The Hudson Reed brand specialises luxury bathroom products at affordable prices, combining comfort and reliability with practicality and quality craftsmanship. The product development team behind Hudson Reed work tirelessly to provide you with the best products at prices we believe will be hard to beat anywhere. Innovation is an everyday experience, and with Hudson Reed you can share that experience. The Hudson Reed range includes everything you need to create your dream bathroom; from taps to towel rails, sanitary-ware to showers we have it all. Bathroom furniture and baths, stylish designer radiators and bathroom accessories for the perfect finishing touch.
