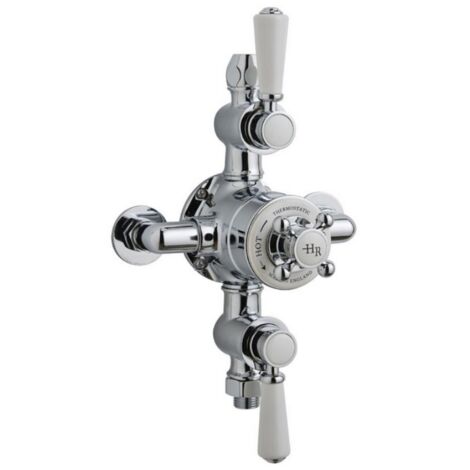

Hudson Reed Topaz Exposed Triple Handle Shower Valve - Chrome

Name: Hudson Reed Topaz Exposed Triple Handle Shower Valve - Chrome
Brand: HUDSON REED
SKU: TSVT102
Price: 239.35 GBP
Availability: InStock

Sold by Heat & Plumb and 1 other seller

Product information

Description

General description

Combining the elegance of traditional styling with modern technology, the Hudson Reed Topaz Exposed Triple Handle Shower Valve in Chrome offers precise flow control and thermostatic regulation. This valve is designed to supply water to two outlets and features full thermal protection to prevent scalding in case of hot or cold water failure.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 3

Valve Position: Exposed

Valve Shape: Round

Handle Type: Crosshead/Lever

Shower Valve Outlets: 2

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Shower Valve Height: 332 mm

Shower Valve Width: 195 mm

Shower Valve Depth: 135 mm

Inlet Connection Size: 15 mm (1/2 BSP)

Connection Centres: 150 mm

Material: Brass

Colour: Chrome

Weight: 3.1 Kg

Flow Rate @ 0.1 Bar: 4.5 l/min

Flow Rate @ 0.5 Bar: 13 l/min

Flow Rate @ 1.0 Bar: 18.5 l/min

Flow Rate @ 2.0 Bar: 26 l/min

Flow Rate @ 3.0 Bar: 33 l/min

EAN Barcode: 5055275831601

Manufacturer Part Number: TSVT102

Installation

During installation, extra care must be taken to avoid damaging the fittings. The cartridge is fully reversible, allowing for easy adjustment if the hot and cold supplies are reversed—simply remove the cartridge, turn it 180 degrees, and replace it.

Usage

This valve is suitable for use with all systems, including gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers. It delivers excellent flow rates even at low pressure, providing 5.5 litres per minute at 0.1 bar pressure.

Other information

The valve features a patented cartridge that is highly resistant to calcium build-up, making it ideal for hard water areas. It also includes a 20-year guarantee against faulty workmanship or materials (1 year on serviceable and moving parts), provided it has been installed, cared for, and used according to the manufacturer's instructions.

Features

Brand
HUDSON REED
Length
13.5 cm
Width
19.5 cm
Height
33.2 cm
Weight
3.1 kg
