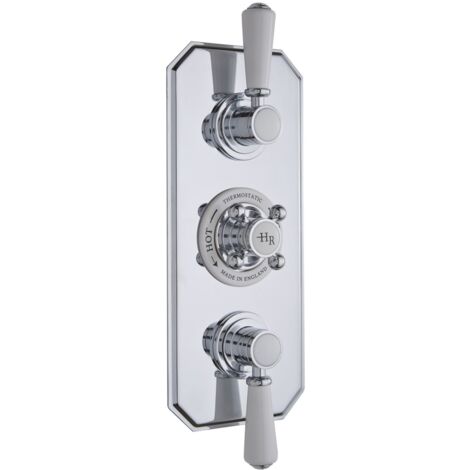

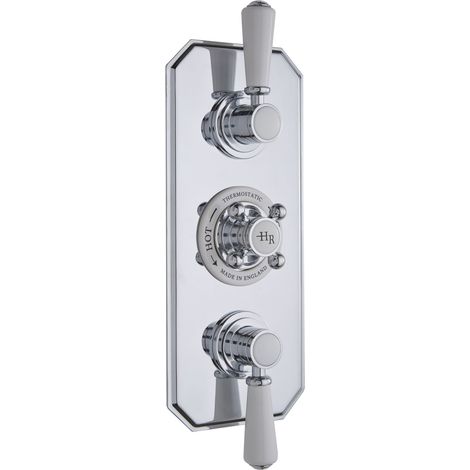

Hudson Reed Topaz Triple Concealed Shower Valve with Diverter - Chrome

Name: Hudson Reed Topaz Triple Concealed Shower Valve with Diverter - Chrome
Brand: HUDSON REED
SKU: TSVT005
Price: 273.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

Hudson Reed Topaz Triple Concealed Shower Valve with Diverter combines traditional elegance with modern technology. This high-quality valve is designed to supply water to three outlets, ensuring accurate flow control and thermostatic regulation within +/- 2 degrees, even with fluctuating water pressure. It features full thermal protection to prevent scalding in case of hot or cold water shut-off, making it a safe choice for any bathroom.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 3

Valve Position: Concealed

Valve Shape: Rectangular

Handle Type: Crosshead/Lever

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Shower Valve Height: 280mm

Shower Valve Width: 120mm

Shower Valve Depth: 98mm

Inlet Connection Size: 15mm

Material: Brass/ABS

Colour: Chrome/White

Weight: 3.3 Kg

Flow Rate @ 0.1 Bar: 5.5 l/min

Flow Rate @ 0.5 Bar: 14 l/min

Flow Rate @ 1.0 Bar: 20 l/min

Flow Rate @ 2.0 Bar: 29 l/min

Flow Rate @ 3.0 Bar: 44 l/min

WRAS Approved: Yes

WRAS Approval Number: 250602040

EAN Barcode: 5055275831625

Manufacturer Part Number: TSVT005

Compatibility and accessories

Suitable for all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Installation

Cartridge is fully reversible; if hot and cold supplies are reversed, simply remove the cartridge, turn it 180 degrees, and replace it.

Usage

Top control operates two shower outlets.

Centre control adjusts temperature.

Bottom control operates the other shower outlet.

Other information

20-year guarantee against faulty workmanship or materials (1 year on serviceable and moving parts).

Features

Brand
HUDSON REED
Colour
White
Material
Brass
Intended use of the tap
Shower
Shape
Rectangular
Height
28 cm
Tap activation mechanism
Mechanical
Weight
3.3 kg
Max pressure
3 bar
Pressure
3 bar
Concealed tap
Yes
38°C Safety
Yes
Type of installation method
Freestanding
Tap type
Dual-lever mixer
ManoMano Reference
ME7205238
MMID
198584104293
Product code
TSVT005
EAN
5055275831625
