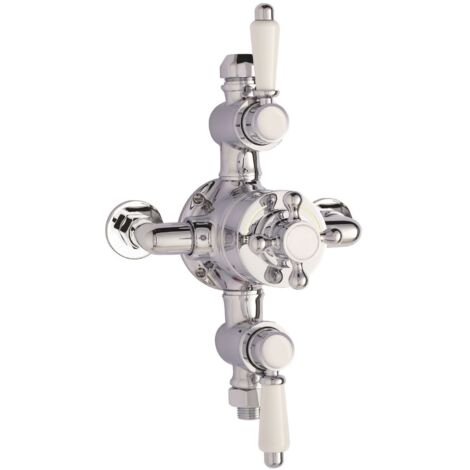

Nuie Victorian Exposed Shower Valve Triple Handle - Chrome

Name: Nuie Victorian Exposed Shower Valve Triple Handle - Chrome
Brand: NUIE
SKU: A3089E
Price: 244.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

Bring a Victorian sensibility to your bathroom with the Nuie Victorian Exposed Shower Valve Triple Handle in Chrome. This traditional shower valve supplies water to two outlets and features an impressive crosshead and lever design, combining style with functionality.

Technical specifications

Valve Type: Thermostatic

Controls: 3

Shower Valve Height: 333mm

Shower Valve Width: 179mm

Shower Valve Depth: 134mm

Inlet Connection Size: 15mm

Connection Centres: 147mm

Pipe Centres: 150mm

Material: Brass

Finish: Chrome

Weight: 3.7 Kg

Flow Rate @ 0.1 Bar: 4.5 l/min

Flow Rate @ 0.5 Bar: 13 l/min

Flow Rate @ 1.0 Bar: 18.5 l/min

Flow Rate @ 2.0 Bar: 26 l/min

Flow Rate @ 3.0 Bar: 33 l/min

Minimum Pressure: 0.1 Bar

Maximum Pressure: 3.0 Bar

Compatibility and accessories

Suitable for use with all systems: gravity fed, pumped, unvented high pressure, or fully modulated combi-boilers

Installation

Can be fitted vertically or horizontally

The cartridge is fully reversible, allowing for easy adjustment if hot and cold supplies are reversed

Simply remove the cartridge, turn it 180 degrees, and replace

Usage

Accurate flow control

Thermostatic control to +/- 2 to 3°C even if water pressure fluctuates

In the event of hot or cold water failure, the valve will shut down the water supply, providing full thermal protection and preventing scalding

Highly resistant to calcium build-up, making it suitable for hard water areas

Other information

Guarantee: 5 Years (12 months on serviceable moving parts from the date of purchase)

EAN Barcode: 5055146184119

Manufacturer Part Number: A3089E

Features

Brand
NUIE
Colour
Grey
Material
Brass
Intended use of the tap
Shower
Height
33.3 cm
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Weight
3.7 kg
Max pressure
3 bar
Pressure
3 bar
Depth
13.4 cm
Wall-mounted tap
Yes
Tap head only
Yes
Type of installation method
For mounting
Tap type
Dual-lever mixer
Installation type
Wall mounted
ManoMano Reference
ME69631
MMID
607947061839
Product code
A3089E
EAN
5055146184119
