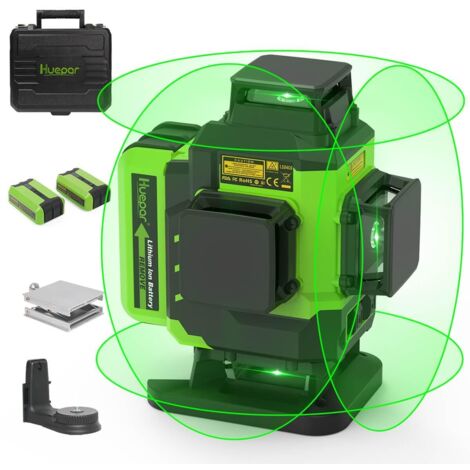

Huepar 4x360 Laser Level Self-leveling 16 Lines Green Beam 4D Cross Line Tiling Floor Laser Tool-2 x 360 Horizontal & 2 x 360 Vertical Laser Lines with Two Li-ion Batteries and Hard Carry Case-LS04CG

Name: Huepar 4x360 Laser Level Self-leveling 16 Lines Green Beam 4D Cross Line Tiling Floor Laser Tool-2 x 360 Horizontal & 2 x 360 Vertical Laser Lines with Two Li-ion Batteries and Hard Carry Case-LS04CG
Brand: HUEPAR
SKU: LS04CG
Availability: OutOfStock
Rating: 4.13 (8 reviews)

~~£229.00~~

Product out of stock

Buying for your business?

Negotiated prices excl. VAT up to -20%

Create a pro account

Product information

Description

General description

This Huepar 4x360 Laser Level is a versatile self-leveling tool that projects four 360-degree planes of laser light, making it ideal for various applications such as ceiling installations and tiling. It features two horizontal and two vertical laser lines that intersect at 90-degree angles, allowing for quick visualization and precise layout work. The lifting base enables the floor laser to project over uneven surfaces, enhancing its usability in challenging environments.

Technical specifications

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Number of Lines: Two 360° horizontal and two 360° vertical laser lines

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft

Leveling/Compensation Range: ±4°

Working Distance (Line): 98Ft, >164Ft with Huepar Receiver LR-5RG/LR-6RG

Power Source: 2 x 5200mAh Li-ion batteries

Operating Time with one Lithium Battery: >5 hours with all laser beams on

Charging Time: 5 hours

IP Rating: IP54 (dust-proof, waterproof, and shockproof)

Mount Size: 1/4"-20

Compatibility and accessories

Compatible with Huepar Laser Receiver LR-5RG/LR-6RG

Includes: 4D tiling laser level, 2 x Li-ion batteries, Type-C cord, power adapter, lifting base, laser target plate, magnetic bracket, hard carry case, user manual

Installation

Strong magnetic bracket allows for quick positioning on metal surfaces

1/4"-20 and 5/8"-11 mounting threads for different tripod compatibility

1/4"-20 female thread on the laser level for mounting to a tripod or laser mounting pole

Usage

Short press the "H" and "V" buttons to switch between horizontal and vertical laser lines

Self-leveling mode activates when the pendulum is unlocked; the tool beeps when out of range

Manual mode allows use at any angle when the pendulum is locked

Pulse mode extends working range up to 200Ft in bright conditions when used with a receiver

Other information

Package includes a hard carry case for convenient storage and transport

Replaceable laser window cover

WARNING: Do not point the laser beam directly into the eyes

Features

Brand
HUEPAR
Length
23 cm
Range
29.9 m
Warranty
2 year(s)
Number of laser lines
16
Certification body
CE
Origin
Made in China
Beam colour
Green
Self-levelling (feature)
Yes
Battery life
300 min
Battery or cell included
Yes
Laser class
2
Light colour
Green
Laser shape
Cross
Height
230 mm
Width
210 mm
Material
Acrylonitrile butadiene styrene (ABS)
Parallel leveling (360°)
Yes
Weight
2100 g
Type of battery
Refillable
ManoMano Reference
ME85206694
MMID
128312108933
Product code
LS04CG
EAN
5012663921603
