General description

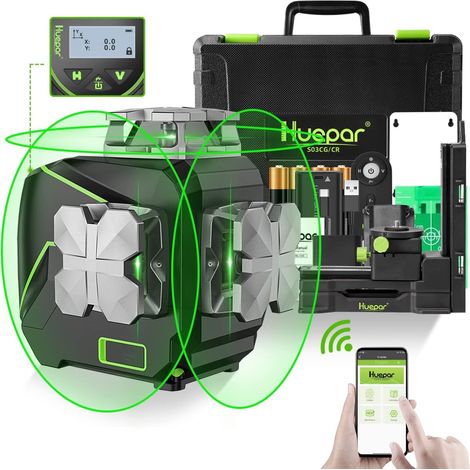

The Huepar S03CG Green Laser Level is a versatile 3D laser tool designed for precise leveling and alignment. It features a 12-line laser projection with 360° coverage, making it ideal for various applications in construction and home improvement. The device is equipped with an LCD screen that displays battery status, angle, pendulum state, and pulse mode, enhancing user convenience.Technical specifications
- Laser class: Class 2 (IEC/EN60825-1/2014), output power < 1 mW
- Screen type: LCD with backlight
- Laser wavelength: 505-520 nm
- Horizontal/vertical accuracy: ± 1/9 inch at 33 feet
- Leveling range: ±3.5°
- Working distance (line): 130 feet (100 LUX), 200 feet with Huepar LR-5RG/LR-6RG receiver
- Power source: Li-ion battery and 4 × AA batteries (LR6)
- Operating time: 7 hours with Li-ion battery (all laser beams on); 1.5 hours with AA batteries (all laser beams on)
- IP rating: IP54, dustproof, waterproof, and shock-resistant
- Mounting size: 1/4"-20 and 5/8"-11
Compatibility and accessories
- Compatible with Huepar LR-5RG/LR-6RG laser receivers for extended range
- Includes a Bluetooth remote control for easy operation
- Comes with a hard carrying case for convenient transport and storage
Installation
- Features a powerful magnetic mount for quick positioning on metal surfaces
- Four fine adjustment knobs on the mount allow for precise left/right and forward/backward positioning, as well as vertical angle adjustment
Usage
- Can project one horizontal line and two vertical lines at 360° using the H/V button
- Smart pendulum self-levels and indicates out-of-level status when unlocked
- Pulse mode extends range up to 200 feet when used with a laser receiver
Other information
- Laser emits a beep when exceeding the self-leveling range of ±3.5°
- Durable metal laser window can be removed and replaced with a screwdriver
