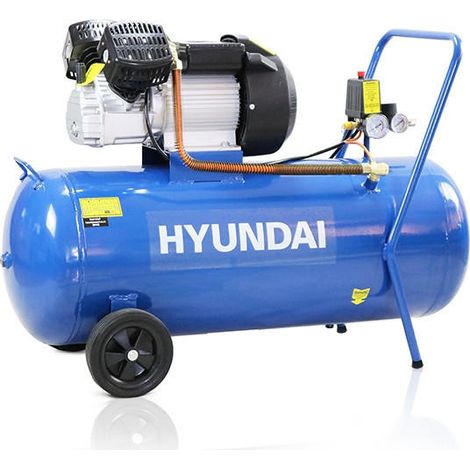

Hyundai 100 Litre Air Compressor, 14CFM/116psi, Silenced, V Twin, Direct Drive 3hp

The HY30100V is a powerful yet compact 3hp V-twin cylinder direct drive air compressor from Hyundai. Designed for DIY and trade applications the HY30100V air compressor is ideal for spray-painting, operating air tools in the workshop or home garage inflating tyres and inflatables.

Weighing 52.5kg the HY30100V features 2 rear wheels and transportation handle for easy manoeuvrability. The V-Twin pump features long-lasting cast-iron cylinders and aluminium cylinder heads for improved cooling and comes ready to go including oil. (Replace the transit plug with the breather/filler plug before use).

Powered by a 3hp electric motor with a 230v 13amp plug, makes it ideal for the home workshop or garage use where conventional residential power sockets are available.

The 5 piece tool kit, which comes with the compressor provides the essential tools to get you started straight out the box for a variety of tasks including spraying, blowing, degreasing and tyre inflating.

The V-twin direct-drive design connects the motor straight to the pump increasing efficiency, allowing all the 3hp produced by the motor to be used to drive the compressor air pump producing more power in what is a very compact design.

The 100-litre tank capacity provides a constant supply of air for air tools with 14CFM, 396 litres per minute air displacement. Twin quick-release air outlets for increased versatility allow two air-lines / tools to be connected at the same time. The pressure regulator allows the outlet pressure to be increased or decreased and the two pressure gauges measure pressure in the tank and the outlet pressure. It's also fitted with an overpressure safety valve, the automatic pressure control system switches the compressor off when the maximum pressure of 8 bar has been reached and restarts it when the pressure drops to 6 bar. Airflow (FAD) 200 L/min / 7 CFM.

Fitted with quick release Euro connectors this compressor is fitted with a standard 13A UK 3-pin Plug.

This air compressor provides a fantastic combination of performance and durability ideal for DIY and trade applications.

Compressor Care: Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.

In the box: HY30100V Electric Air Compressor, 5-piece air tool kit (high pressure 2m coiled hose with male and female Q/R Euro fittings, tyre inflator, degreaser, spray gun and air duster/jetter all with Q/R fitting) and User Manual.

Assembly required: Fit wheels (2 bolts), fit cylinder head heat covers (4 screws), fit two rubber feet and screw in air filters. Compressor pump if filled with oil ready for use. This should take 10-15 minutes.

Covered by Hyundai 2 year standard warranty.

• Powered by a Hyundai 2.2kW 3hp 230v motor.
• V-twin direct drive pump fitted with a standard 13A UK Plug.
• 100-litre tank capacity provides an air displacement of 14CFM or 396 litres per minute and 8bar / 115psi.
• Airflow (FAD) 200 L/min / 7 CFM.
• Fitted with twin Euro quick release connectors.
• 5 piece tool kit including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.
• Includes twin pressure gauges, an automatic cut out switch, safety valve and pressure regulator/ adjuster.
• Covered by Hyundai 2 year warranty.
• Full spares available to maintain your air compressor for years to come.

• Powered by a Hyundai 2.2kW 3hp 230v motor.
• V-twin direct drive pump fitted with a standard 13A UK Plug.
• 100-litre tank capacity provides an air displacement of 14CFM or 396 litres per minute and 8bar / 115psi.
• Airflow (FAD) 200 L/min / 7 CFM.
• Fitted with twin Euro quick release connectors.
• 5 piece tool kit including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.
• Includes twin pressure gauges, an automatic cut out switch, safety valve and pressure regulator/ adjuster.
• Covered by Hyundai 2 year warranty.
• Full spares available to maintain your air compressor for years to come.
